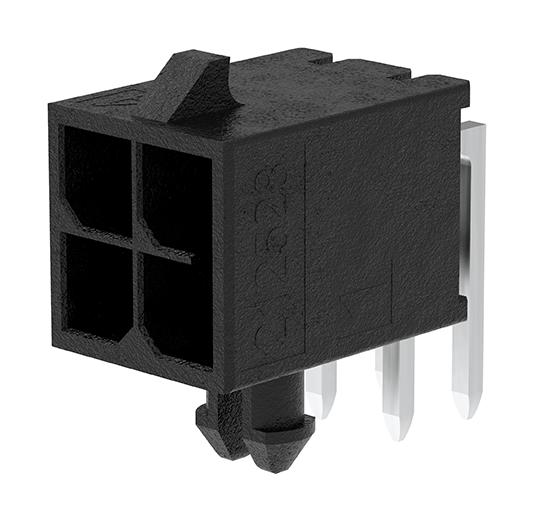

MOLEX 2125280400 Micro-Fit+ Connector
The MOLEX 212528-0400 is a Micro-Fit+ right-angle header, ideal for wire-to-board connections in various industrial and consumer electronics applications. Its right-angle design simplifies PCB layout and reduces strain on the connection. Constructed with a high copper alloy and matte tin plating, this connector ensures excellent conductivity and durability. The UL 94V-0 rated liquid crystal polymer resin provides fire retardancy, enhancing safety in demanding environments. It is designed to mate with Micro-Fit+ receptacles, offering a secure and reliable connection.
MOLEX 2125280400 Micro-Fit+ Connector Specifications:
- product_family: Micro-Fit+ Connector System
- application: Power, Wire-to-Board
- circuits: 4
- color: Black
- durability_mating_cycles: 25
- glow_wire_capable: Yes
- keying: Yes
- lock_to_mating_part: Yes
- material_metal: High Copper Alloy
- material_plating: Matte Tin
- material_resin: Liquid Crystal Polymer
- net_weight_g: 0.660
- number_of_rows: 2
- orientation: Right Angle
- pcb_tail_length_mm: 3.18
- pcb_thickness_recommended_mm: 1.57
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- pitch_termination_interface_mm: 3.00
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- temperature_range_operating_c: -40 to +105
- termination_interface_style: Through Hole
- current_max_per_contact_a: 12.5
- voltage_max_ac_rms_dc_v: 600
- upc: 193264254972
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
