MOLEX 2162711043 Stackable Cable Assembly
The Molex 2162711043 is a versatile off-the-shelf stackable linear positive lock cable assembly designed for rapid prototyping and large-scale production. It features a female-to-pigtail configuration with 300mm length, supporting four circuits in a black polyester alloy housing. Made with phosphor bronze contacts with tin plating, this assembly ensures reliable connection in high-vibration environments thanks to a secure position assurance lock. Suitable for consumer, industrial, automotive, medical, and networking applications, it operates at up to 600V AC/DC, withstands temperatures from -40°C to +105°C, and supports up to 25 mating cycles for durable, dependable performance.
MOLEX 2162711043 Stackable Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits: 4
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 6.395 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical Current - Max per Contact: 3.0A
- Voltage - Max: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Endurance: Up to 25 mating cycles
- Standards: UL, CSA
- RoHS Compliance: Yes
- Halogen-Free: No
- Vibration Resistance: Yes

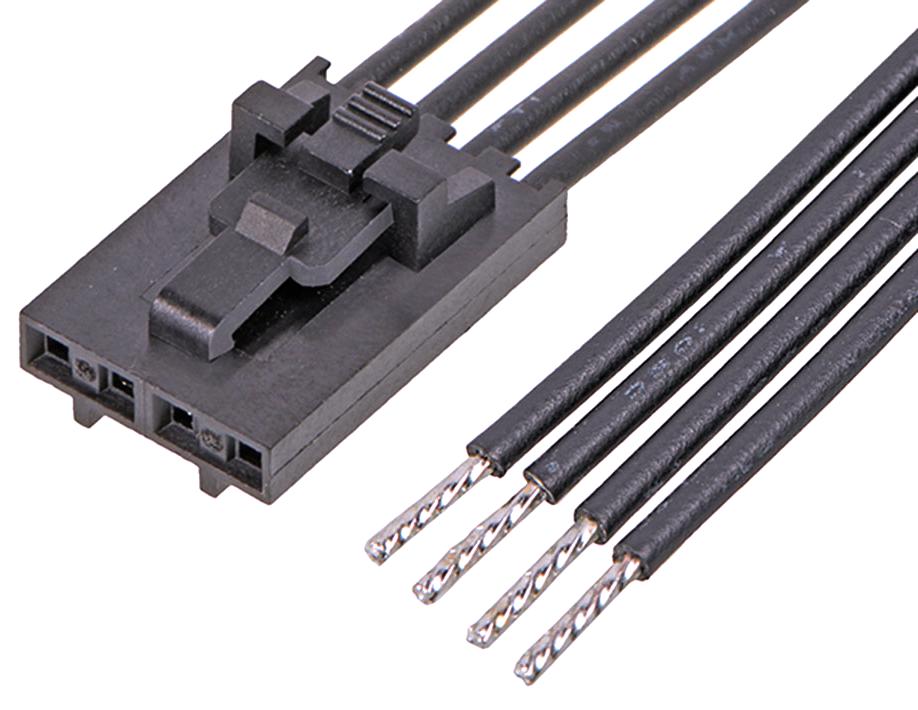

Buy the Buy Molex Signal Cable Assembly Part Number 2162711043 Online
Experience the dependable quality of Molex stackable cable assemblies, designed for robust performance across a wide range of applications. This 4-circuit, 300mm length female-to-pigtail connector features a positive lock for secure engagement, high vibration resistance, and UL/CSA compliance. Made with durable materials including phosphor bronze contacts with tin plating and polyester alloy housing, it supports up to 600V and 3A current. Ideal for prototyping and mass production in industrial, automotive, medical, and communication electronics, ensuring safe, reliable connections in demanding environments.
Order your Molex Series216271 2162711043 cable assembly today and ensure reliable performance for your industrial, automotive, or networking projects.
Frequently Asked Questions
Where can I buy MOLEX 2162711043?
You can click on the BUY or RFQ button to purchase 2162711043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711043?
You can download the 2162711043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711043?
MOLEX
