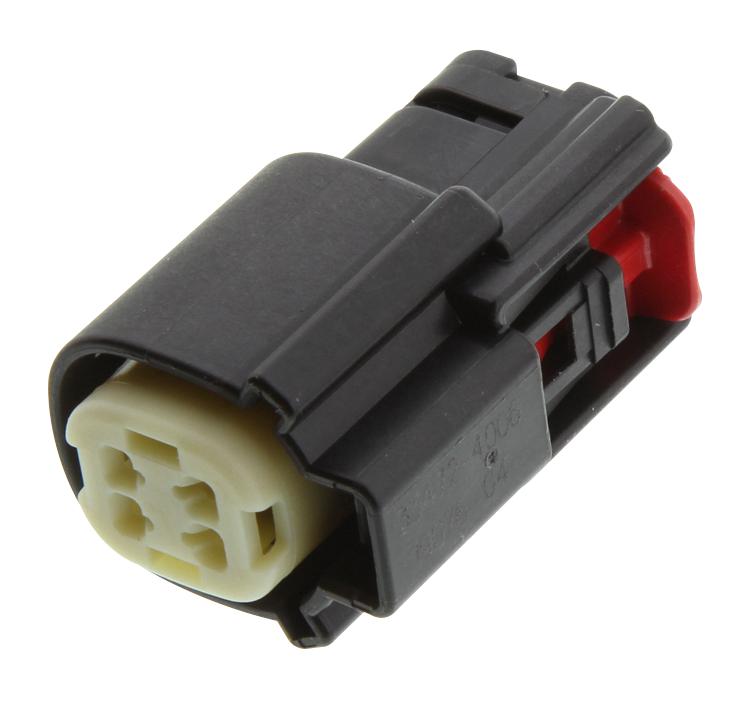

MOLEX 334724006 MX150 Sealed Connector
The MOLEX 33472-4006 is a robust MX150 sealed female connector within the 33472 series. Designed for demanding applications like power distribution and wire management, this connector offers 4 circuits and incorporates features like polarization A and connector position assurance (CPA) to ensure secure and reliable mating. Constructed with SPS/Nylon resin, it's suitable for operating temperatures ranging from -40°C to +125°C, making it ideal for automotive and industrial environments. It is RoHS compliant and low-halogen.
MOLEX 334724006 MX150 Sealed Connector Specifications:
- Product Family: Crimp Housings
- Series: 33472
- Application: Power, Wire-to-Board, Wire-to-Wire
- Circuits (maximum): 4
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: SPS/Nylon
- Net Weight: 8.560/g
- Number of Rows: 2
- Packaging Type: Individual Cell Panel Mount
- Pitch - Mating Interface: 3.50mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +125°C
- EU ELV Compliant: Yes
- EU RoHS: Compliant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: MX150 Male Sealed Connector 33482
- Use With: MX150 Female Terminal 33012, 33001, MX150 Cavity Plug Sealed 343450001
