MOLEX 2162711084 Discreet Cable Assembly
This off-the-shelf stackable linear positive lock discrete cable assembly is ideal for prototyping and mass production across multiple industries. It features reliable dual contact points, a locking mechanism to prevent disconnection in vibration-prone environments, and multiple termination options including crimp, FFC, and IDT. The housing is low-profile and stackable, supporting vertical and right-angle headers, with specifications for voltage, current, temperature range, and durability. Made from polyester alloy with phosphor bronze contacts and tin plating, it ensures durability and performance in diverse applications such as industrial automation, automotive, and telecommunications.
MOLEX 2162711084 Discreet Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Assembly Configuration: Connector to Connector
- Cable Length: 600.00mm
- Circuits (Loaded): 8
- Color - Resin: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 23.285 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Maximum Mating Cycles: 25
- Material Info: Polyester Alloy housing, phosphor bronze contacts, tin plating
- Certifications: UL, CSA

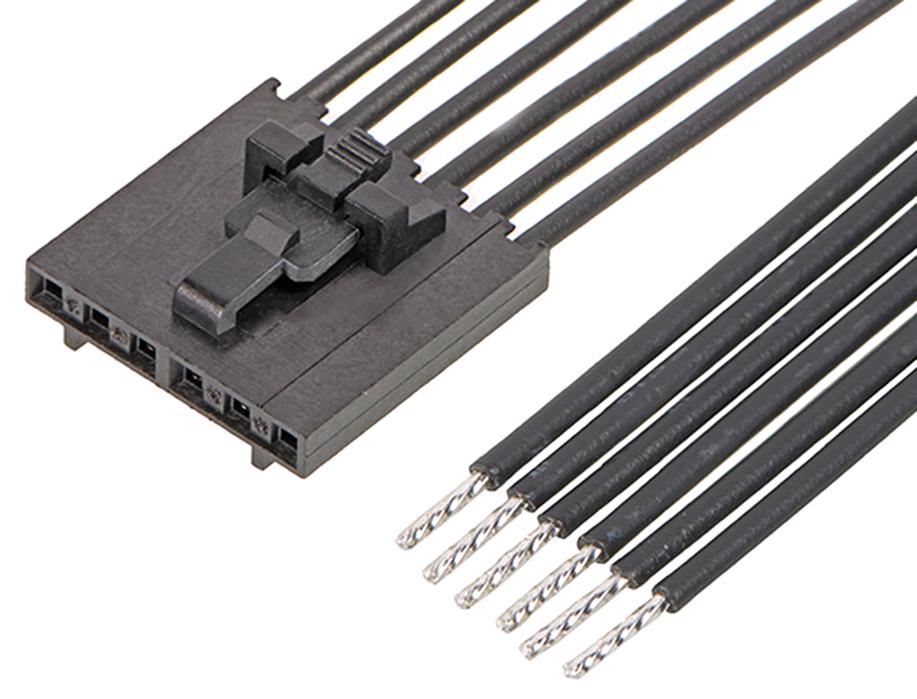

Buy the Molex Series SL Cable Assembly: 2162711084
Purchase the Molex discreet cable assembly online today to ensure reliable, high-performance connections for your industrial, automotive, or data communication needs. Featuring dual contact points, locking mechanisms, multiple termination options, and a rugged polyester alloy housing, this assembly guarantees durability and electrical performance across diverse environments. With a compact, stackable design supporting vertical and right-angle headers, it’s perfect for prototypes and mass production. Order now for fast delivery and seamless integration into your projects.
Buy Molex 2162711084 now and experience unmatched reliability and performance in industrial, automotive, and telecommunications applications.
Frequently Asked Questions
Where can I buy MOLEX 2162711084?
You can click on the BUY or RFQ button to purchase 2162711084 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711084?
You can download the 2162711084 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711084?
MOLEX
