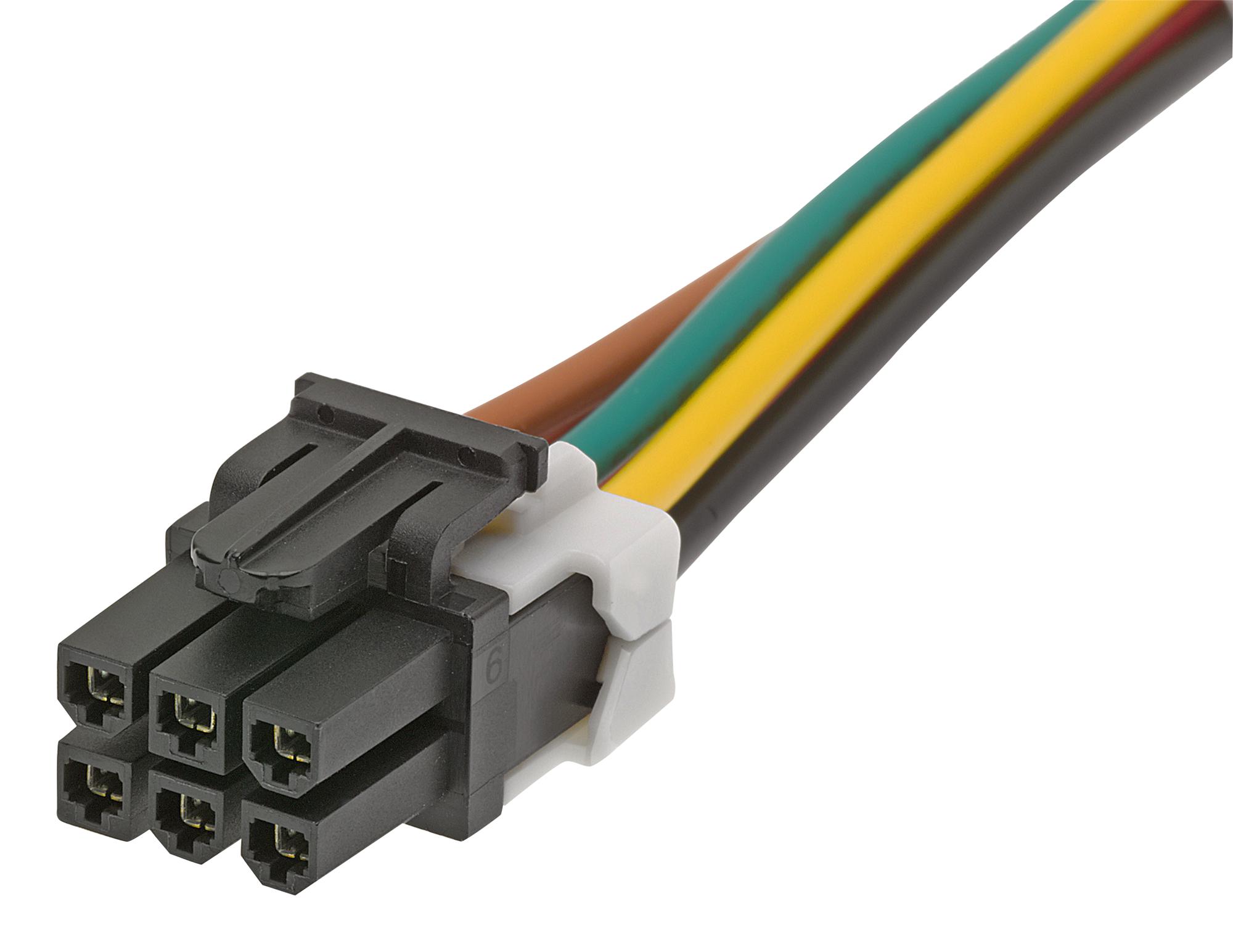

MOLEX 451350603 Power Cable Assembly
The Mini-Fit Jr.™ TPA to Mini-Fit Jr.™ TPA Off-the-Shelf Cable Assembly features a dual-row, 300mm length, black color, and 6 circuits, designed for power applications. The assembly connects two Mini-Fit Jr.™ TPA connectors at both ends, providing a secure and reliable connection with female-female gendering. Constructed with brass material, plated with tin on both the mating and termination sides, and housed in a nylon resin insulation, it supports a maximum current of 8.0A and voltages up to 300V. Its compact design ensures easy installation, suitable for various power projects requiring quick, off-the-shelf solutions.
MOLEX 451350603 Power Cable Assembly Specifications:
- Assembly Configuration: Connector to Connector
- Product Family: Cable Assemblies
- Series: 45135
- Application: Power
- Connecting Ends: Dual Mini-Fit Jr.™ TPA Connectors
- Length: 300.00mm
- Number of Circuits: 6
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 50.525 grams
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Plating Min - Mating: 0.889um
- Plating Min - Termination: 0.889um
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 2.35mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1007
- Current - Maximum per Contact: 8.0A
- Voltage - Maximum: 300V
- Environmental Compliance: RoHS, China RoHS, REACH SVHC Not Contained, Halogen-Free (Not Low-Halogen)
Buy the Molex Series 45135 Power Cable Assembly: 0451350603
Discover the reliable Molex Series 45135 Power Cable Assembly, featuring a dual Mini-Fit Jr.™ TPA connection, 300mm length, and 6 circuits ideal for power supply applications. Made with durable brass and tin-plated metal components, housed in nylon insulation, this assembly supports up to 8.0A and 300V, ensuring safety and efficiency. Its compact design makes installation effortless, offering a quick, off-the-shelf solution for contractors and engineers. Perfect for various power wiring projects requiring high-quality, secure, and robust connections. Buy online now for trusted performance.
Order your Molex Series 45135 0451350603 Power Cable Assembly today and give your projects the dependable power connection they deserve.
Frequently Asked Questions
Where can I buy MOLEX 451350603?
You can click on the BUY or RFQ button to purchase 451350603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 451350603?
You can download the 451350603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 451350603?
MOLEX
