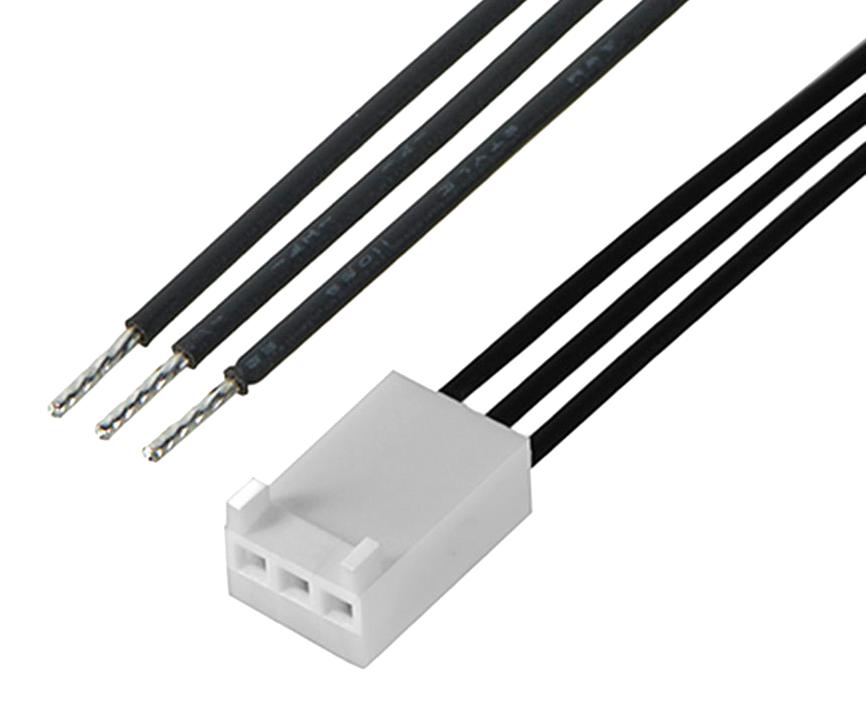

MOLEX 2177971033 KK 254 Cable Assembly
The MOLEX 217797-1033 is a KK 254-to-Pigtail Off-the-Shelf (OTS) cable assembly designed for various industrial applications requiring robust and reliable connectivity. This assembly features a 600.00mm length, 3 circuits, and a 2.54mm pitch, making it suitable for connecting KK 254 PCB headers. Constructed with brass and plated with tin for both mating and termination interfaces, this cable assembly offers excellent conductivity and durability. It is RoHS compliant and features a natural (white) resin color, making it ideal for applications where aesthetics and environmental compliance are important.
MOLEX 2177971033 KK 254 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- pitch_mating_interface: 2.54mm
- cable_length: 600.00mm
- circuits_loaded: 3
- color: Natural (White)
- gender: Female-Pigtail
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 1
- wire_insulation_diameter_max: 1.57mm
- wire_size_awg: 22
- wire_cable_type: UL 11028 171857
- net_weight_g: 8.151
- upc: 195842123038
- reach_svhc: Not Contained
- halogen_free: Yes
- low_halogen: Yes
- lock_to_mating_part: Yes
- termination_interface_style: Crimp or Compression
- mates_with: KK254 PCB Headers (42375, 42377, 42376, 4030, 6373, 6410, 1718 56, 171857)
- sales_drawing: 2177971031-000
Buy the 217797-1033 MOLEX KK 254 Cable Assembly | myMectronic
Purchase the MOLEX 217797-1033 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2177971033?
You can click on the BUY or RFQ button to purchase 2177971033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177971033?
You can download the 2177971033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177971033?
MOLEX
