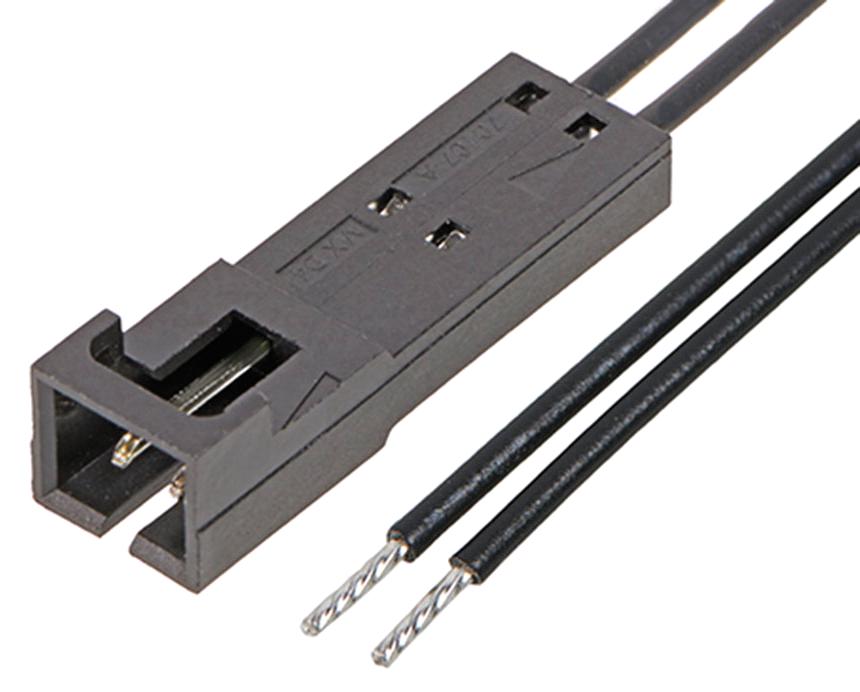

MOLEX 2162731023 Stackable Cable Assembly
The off-the-shelf stackable linear positive lock cable assemblies are ideal for prototyping and production across various industries, including automotive, medical, and telecommunications. These assemblies support multiple termination styles such as crimp, FFC, and IDT, featuring two independent contacts for redundancy, ensuring reliable electrical performance. Equipped with a position assurance lock, they prevent disconnection in high-vibration environments. Made with a durable polyester alloy housing and phosphor bronze contacts with tin plating, they operate from -40°C to +105°C, supporting up to 600V and 3A current, with a maximum long-term reliability of 25 cycles.
MOLEX 2162731023 Stackable Cable Assembly Specifications:
- Series: 216273
- Application: Signal, Wire-to-Wire
- Assembly Configuration: Connector to Connector, Single Ended
- Cable Length: 300.00mm
- Circuits (Loaded): 2
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 3.505 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical: Current - Maximum per Contact: 3.0A, Voltage - Maximum: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Durability: Up to 25 cycles
- Standards: UL 11028, RoHS, China RoHS, REACH SVHC Non-Contained
- Environmental Compatibility: Halogen-Free, Not Low-Halogen
Buy the Molex Series 216273 Signal Wire-to-Wire: 2162731023
Purchase the Molex stackable cable assembly online and experience dependable electrical connections in your prototyping or production projects. Designed for versatility, these assemblies support multiple termination styles including crimp, FFC, and IDT. They feature dual contact points for redundancy, a secure position assurance lock for vibration resilience, and are built with robust polyester alloy housing and tin-plated phosphor bronze contacts. Operating efficiently from -40°C to +105°C with a maximum voltage of 600V and current of 3A, ensuring long-lasting performance.
Buy Molex 2162731023 reliable stackable cable assemblies now and ensure secure, high-performance connections even in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 2162731023?
You can click on the BUY or RFQ button to purchase 2162731023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731023?
You can download the 2162731023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731023?
MOLEX
