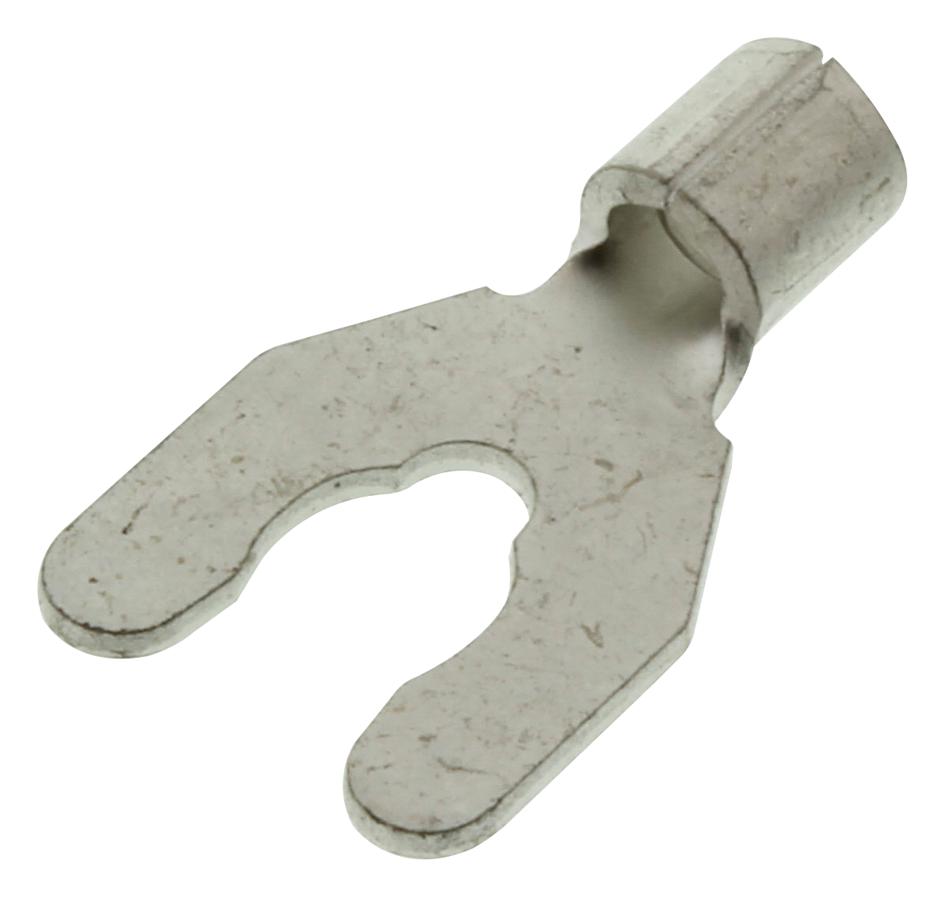

MOLEX 190980047 Krimptite Snap Spade Terminal
The MOLEX 19098-0047 Krimptite Snap Spade Terminal is a solderless terminal designed for secure and reliable electrical connections. It is specifically engineered for use with 14-16 AWG wire and a stud size of 8 (M4), making it suitable for a variety of applications in automotive, industrial, and consumer electronics. The terminal's closed barrel design and tin plating ensure excellent conductivity and corrosion resistance. It is RoHS compliant and part of the widely recognized 19098 series, known for its quality and performance. Application tooling is available for efficient and consistent crimping.
MOLEX 190980047 Krimptite Snap Spade Terminal Specifications:
- Part Number: 0190980047
- Status: Active
- Overview: Solderless Terminals
- Description: Krimptite Snap Spade Terminal, for 14-16 AWG Wire, Stud Size 8 (M4), 16.41mm
- Length: None
- Agency Certification - CSA: LR18689
- Agency Certification - UL: E32244
- Product Family: Ring and Spade Terminals
- Series: 19098
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Krimptite
- Type: Spade Snap
- UPC: 800755081503
- Barrel Type: Closed
- Insulation: None
- Plating Mating: Tin
- Net Weight: 0.646/g
- Packaging Type: Bag
- Stud Size: 8 (M4)
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Engineering Number: BB-1716-08
- Product Specification: PS-19902-011-001, PS-19902-013-001
- Sales Drawing: SD-19098-004
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free: Low-Halogen
- RoHS Phthalates: Not Contained
Buy the 19098-0047 MOLEX Krimptite Snap Spade Terminal | myMectronic
Purchase the MOLEX 19098-0047 Krimptite Snap Spade Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190980047?
You can click on the BUY or RFQ button to purchase 190980047 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190980047?
You can download the 190980047 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190980047?
MOLEX
