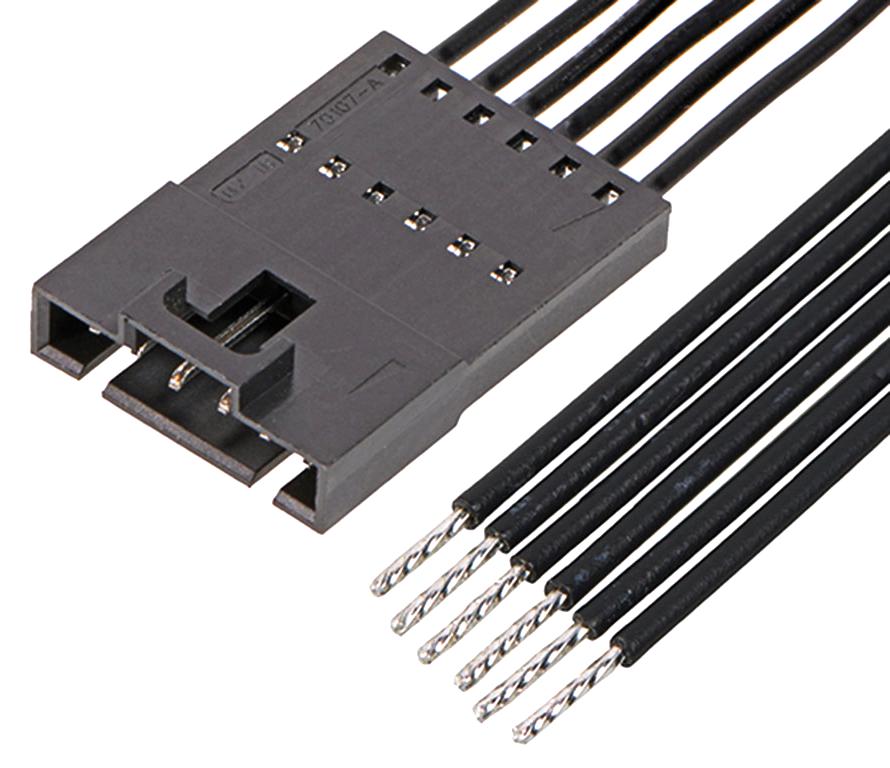

MOLEX 2162731061 SL Male-to-Pigtail Cable Assembly
The MOLEX 216273-1061 is a versatile off-the-shelf cable assembly designed for signal wire-to-wire applications. This assembly features a SL male connector transitioning to a pigtail configuration, providing flexibility in connection setups. With a positive lock mechanism and a single-row design, it ensures secure and reliable connections. The tin plating on both mating and termination interfaces enhances conductivity and corrosion resistance. Suitable for various industrial and commercial applications, this cable assembly offers a convenient and readily available solution for signal transmission needs.
MOLEX 2162731061 SL Male-to-Pigtail Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Signal, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: SL-to-Pigtail
- cable_length: 100.00mm
- circuits_loaded: 6
- color: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Polyester Alloy
- net_weight: 4.835/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 2.54mm
- wire_insulation_diameter: 1.63mm max.
- wire_size_awg: 22
- wire_cable_type: UL 11028
- current_max_per_contact: 3.0A
- voltage_max: 600V AC/DC
- upc: 193264731657
- series: 216273
Buy the 216273-1061 MOLEX SL Male-to-Pigtail Cable Assembly | myMectronic
Purchase the MOLEX 216273-1061 cable assembly securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2162731061?
You can click on the BUY or RFQ button to purchase 2162731061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731061?
You can download the 2162731061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731061?
MOLEX
