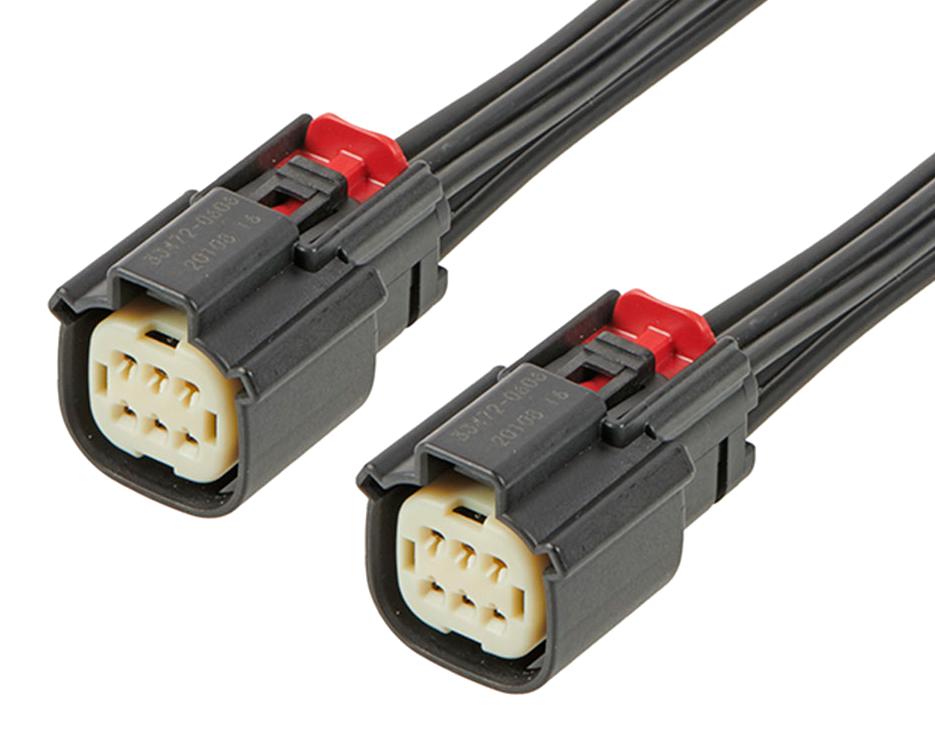

MOLEX 2162851061 MX150 Cable Assembly
The MOLEX 216285-1061 is a robust MX150 Female-to-Female Off-the-Shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. It boasts a dual-row configuration, a 150mm length, and tin plating on both mating and termination interfaces. Constructed with a high-performance alloy and SPS/Nylon resin, this assembly offers excellent durability and signal integrity. It is ideal for applications requiring a sealed and reliable connection.
MOLEX 2162851061 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 362.500/g
- number_of_rows: 2
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714568
Buy the 216285-1061 MOLEX MX150 Cable Assembly | myMectronic
Purchase the MOLEX 216285-1061 cable assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2162851061?
You can click on the BUY or RFQ button to purchase 2162851061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162851061?
You can download the 2162851061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162851061?
MOLEX
