MOLEX 1200700395 M12 Connector

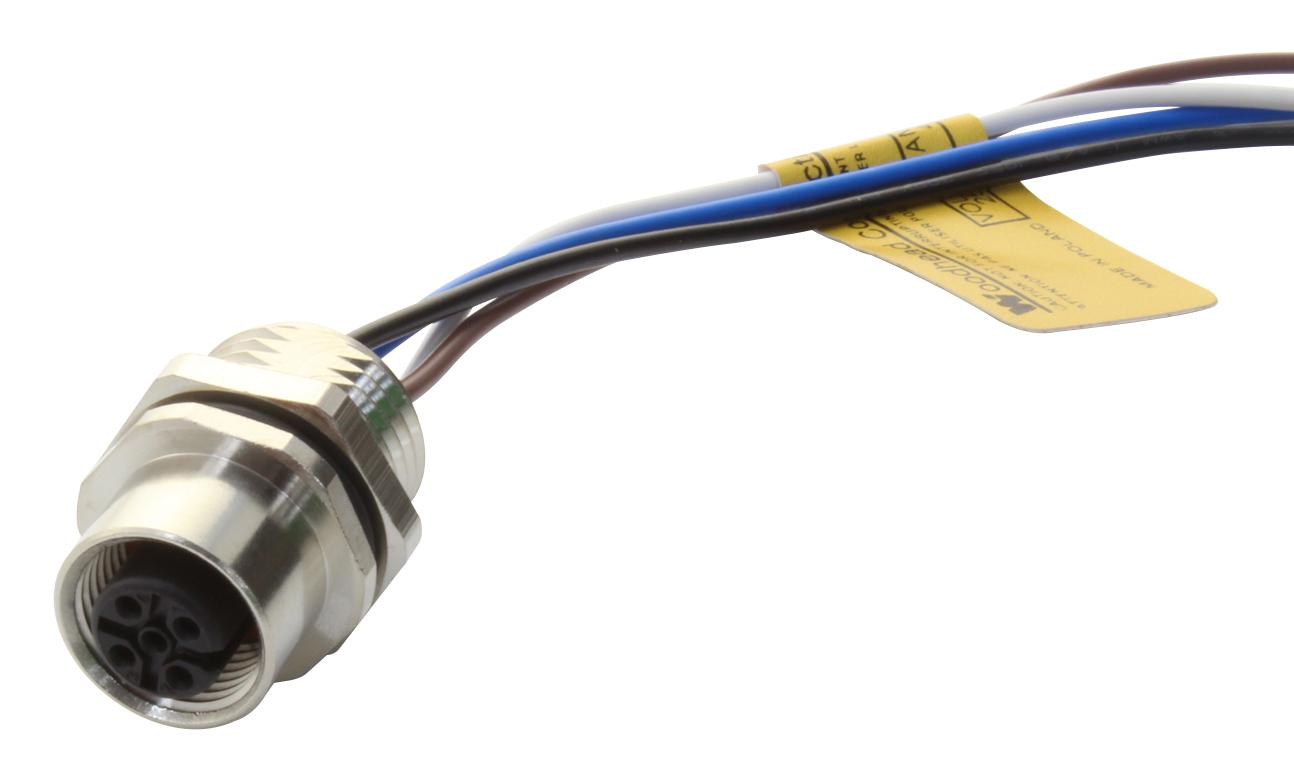

The Micro-Change M12 Receptacle with 4 poles is designed for industrial automation and sensor applications, offering a robust IP67 and NEMA 6 rated connection. Featuring a straight female connector with M12x1 threads, it has 22 AWG wire leads extending 0.30 meters (11.81 inches). Made from nickel-plated brass, it supports operating temperatures from -20°C to +80°C and delivers a maximum current of 4A at 250V AC/DC. Suitable for rugged environments, it ensures reliable electrical performance with high environmental resistance.
MOLEX 1200700395 M12 Connector Specifications:
- Series: Micro-Change (M12)
- Poles: 4
- Gender: Female
- Coupling Type: Internal thread
- Connection: Straight
- Material - Component: Nickel-plated brass
- Length: 0.30 meters (11.81 inches)
- Mounting Thread Size: PG9Q
- Maximum Current: 4A
- Maximum Voltage: 250V AC/DC
- Temperature Range: -20°C to +80°C
- Wire Size AWG: 22
- Wire/Cable Type: Leads, UL 1061
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Environmental Compliance: RoHS, REACH SVHC free, Halogen-Free, Not Low-Halogen
- Certifications: CSA
- Product Status: Active
Buy the Molex Series Micro-Change M12 Receptacle: 1200700395
Purchase the Molex Micro-Change M12 Receptacle online today and benefit from its rugged design, IP67 rated protection, and high-performance electrical features. This 4-pole female connector with 22 AWG leads is ideal for industrial sensors, automation systems, and outdoor applications demanding durability and environmental resistance. With a maximum current of 4A at 250V and operating temperature range from -20°C to +80°C, it ensures reliable connectivity in tough conditions. Order now to enhance your automation solutions with trusted quality.
Order your Molex Series Micro-Change M12 Receptacle today and ensure reliable, high-quality connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy MOLEX 1200700395?
You can click on the BUY or RFQ button to purchase 1200700395 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200700395?
You can download the 1200700395 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200700395?
MOLEX
