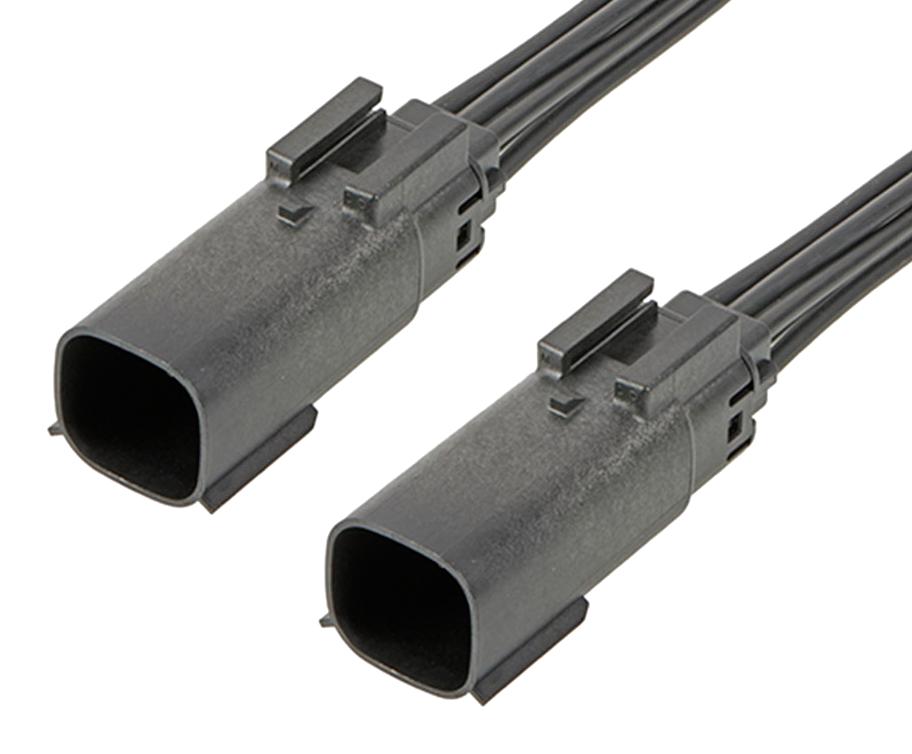

MOLEX 2162871063 MX150 Male-to-Male Cable Assembly
The MOLEX 216287-1063 is an off-the-shelf cable assembly designed for demanding applications requiring a secure and reliable connection. This assembly utilizes a MX150 male-to-male connector configuration, providing a dual-row design with 6 circuits. The cable is 600mm in length and features tin plating for enhanced conductivity and corrosion resistance. Constructed with a high-performance alloy and SPS/Nylon resin, this cable assembly is suitable for power transmission and wire-to-board/wire-to-wire applications in various industrial settings. It is RoHS compliant and designed for ease of integration.
MOLEX 2162871063 MX150 Male-to-Male Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 600.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin
- plating_termination: Tin
- material_resin: SPS/Nylon
- net_weight: 1162.500/g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_maximum_per_contact: 22.0A
- voltage_maximum: 14V DC
- upc: 193264714704
