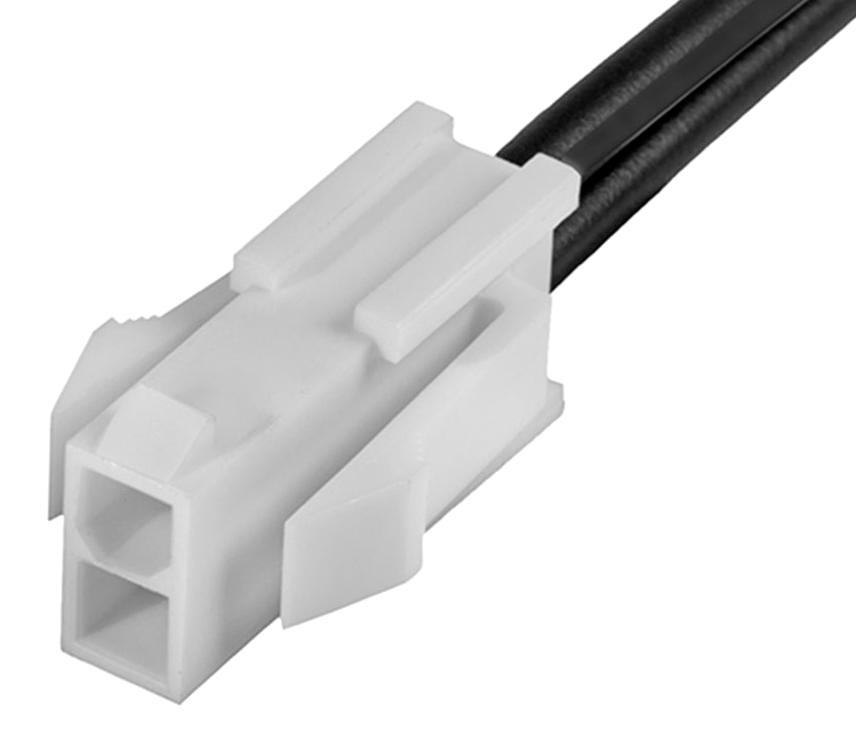

MOLEX 2153262021 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-2021 is a Mini-Fit Jr. female-to-pigtail cable assembly, ideal for power applications, wire-to-board connections, and wire-to-wire assemblies. This assembly offers a dual-row design, a 150mm length, and gold plating on the mating interface for enhanced conductivity and durability. The termination features tin plating, and the housing is constructed from black nylon resin. It is designed to mate with various MOLEX connectors, including 5559, 5566, 5569, 43810, 44068, 44281, 87427, 42404, and 42440, providing flexibility in system design. It is RoHS compliant and REACH SVHC substances are not contained.
MOLEX 2153262021 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 8.133/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264590094
- mates_with: 5559, 5566, 5569, 43810, 44068, 44281, 87427, 42404, 42440
- drawing_number: 2153262021-000
