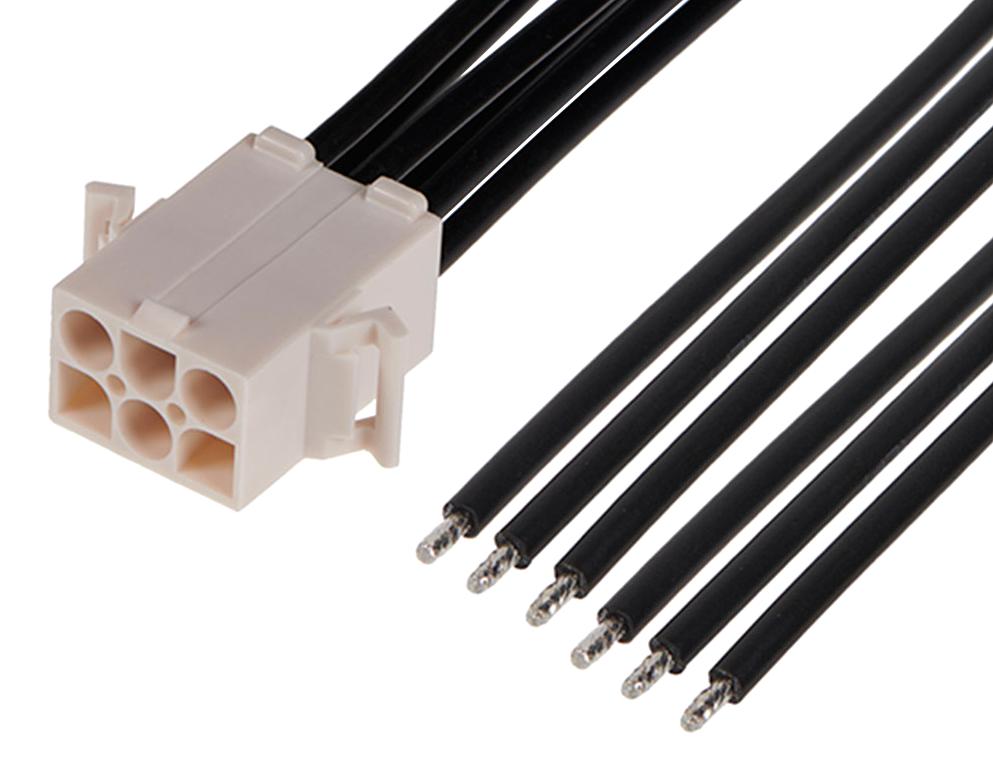

MOLEX 2162931061 Power Connector
The 216293 series is a standard off-the-shelf (.093 inch) male-to-pigtail cable assembly designed for quick, reliable connections in various electronic and industrial applications. It features a 150mm cable length, tin-plated contacts, and supports currents up to 12A with a maximum voltage of 600V. The assembly is compatible with standard connector housings, offers keying to prevent mis-mating, and is rated for 25 mating cycles. Suitable for temperatures from -40°C to +105°C, this versatile connector ensures robust performance in demanding environments.
MOLEX 2162931061 Power Connector Specifications:
- Cable Length: 150.00mm
- Circuits: 6
- Color - Resin: Natural
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature: -40°C to +105°C
- Wire Insulation Diameter: 6.70mm
- Wire Size AWG: 14
- Lock to Mating Part: Yes
- Termination Interface: Crimp or Compression
- Termination Diameter Range: 1.65-4.06mm
- Compliance: RoHS, China RoHS
Buy the Molex 216293 U–2013 Reliable Power Connector for Industrial Applications
Purchase the Molex Power Connector today for reliable and secure connections in your electronics or industrial projects. Engineered for quick assembly, it features a standard .093 inch mating interface, tin-plated contacts for corrosion resistance, and supports up to 12A current at 600V. Its robust nylon housing ensures durability under demanding conditions, while the keying prevents mis-mating. Suitable for temperatures from -40°C to +105°C, this connector is ideal for demanding environments requiring high reliability and easy installation for power distribution or signal transmission.
Get Molex 216293 today—designed for dependable power and signal connections with quick installation and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2162931061?
You can click on the BUY or RFQ button to purchase 2162931061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162931061?
You can download the 2162931061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162931061?
MOLEX
