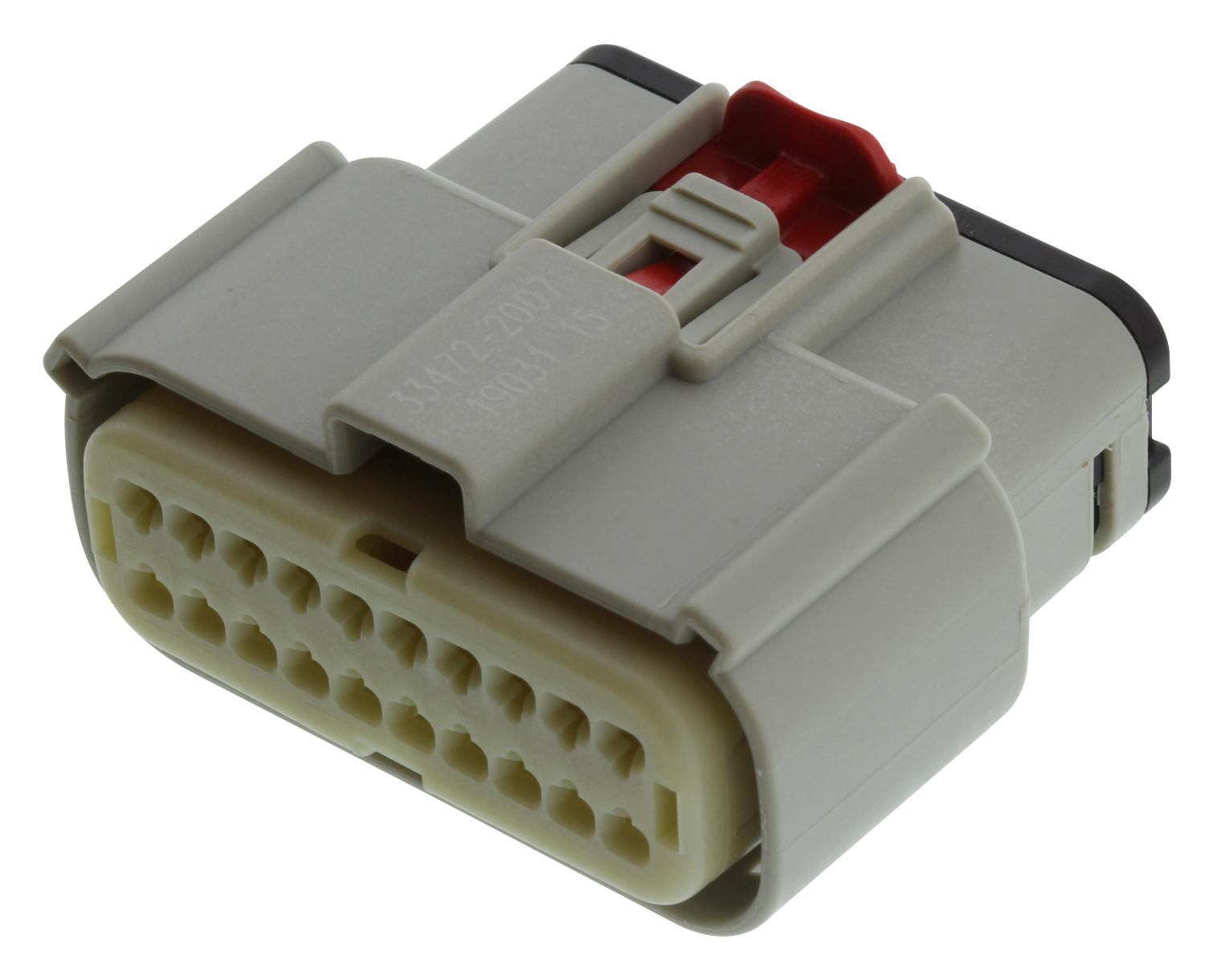

MOLEX 334722007 Sealed Female Connector
The MOLEX 33472-2007 is a robust sealed female connector within the MX150 series, engineered for reliable connections in demanding applications. This connector boasts 20 circuits, polarization B, and incorporates connector position assurance (CPA) to prevent mismating. Constructed with modified polystyrene resin, it offers excellent durability and resistance to environmental factors. Commonly used in automotive, industrial automation, and power distribution systems, the MX150 connector ensures secure and dependable power and signal transmission. It is compatible with MX150 male connectors and various terminals and backshells, providing a comprehensive connection solution.
MOLEX 334722007 Sealed Female Connector Specifications:
- circuits_maximum: 20
- color_resin: Light Gray
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Modified Polystyrene
- alloy: N/A
- net_weight_g: 21.740
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- lead_free_process_capability: N/A
- eu_elv_compliant: Yes
- eu_rohs_compliant: Yes
- china_rohs_compliant: Yes
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- series: 33472
- mates_with: MX150 Male Sealed Connector, 33482 MX150 Right-Angle Header 348300804
- use_with: MX150 Female Terminal 33012, 33001 MX150 Cavity Plug Sealed 343450001 MX150 Backshell 349512011, 349502021
