MOLEX 2163311083 Datasheet & Stock

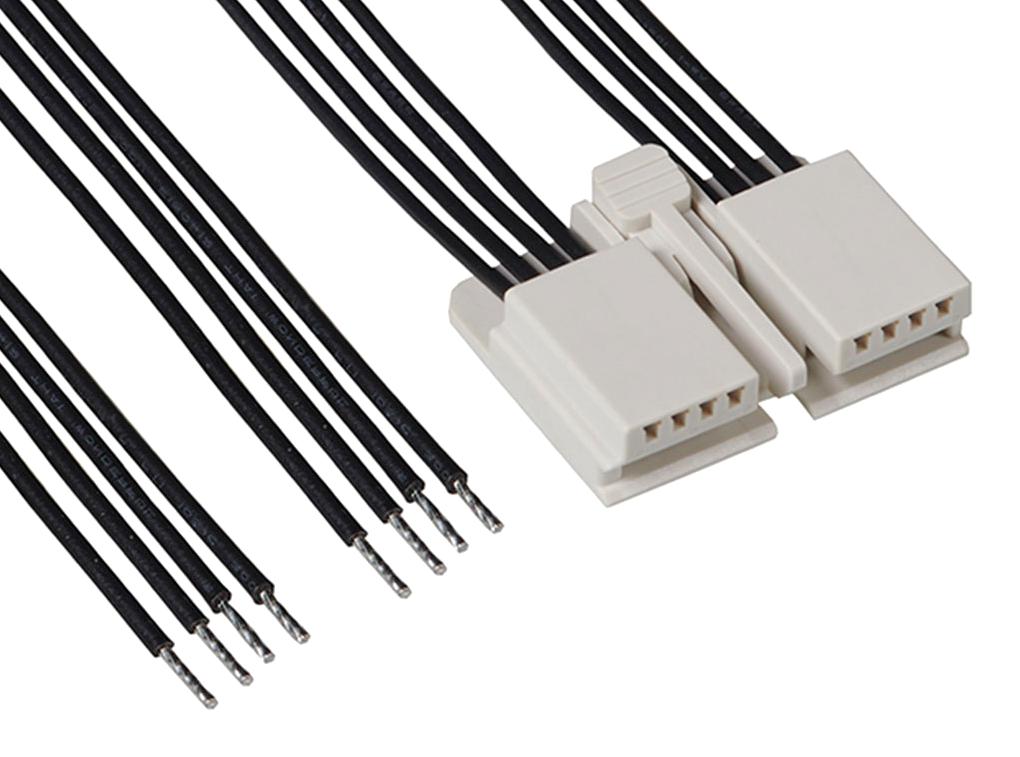

The EdgeLock 216331 series off-the-shelf (OTS) cable assembly features a secure locking mechanism on the reverse side of the crimp terminal, preventing accidental disconnection once inserted into the housing cavity. Its dual cantilever crimp terminal design with embossed contact points ensures reliable electrical connection and durability. The connector housing includes a polarization rib to prevent mis-mating with the PCB. Suitable for consumer, household, industrial, and solid-state lighting applications, this assembly offers space-saving design and various cable lengths. It is UL approved (File No.: E29179), rated for a maximum voltage of 125VAC/DC and a current of up to 3A, with a durability of up to 30 mating cycles. Constructed with a nylon housing, phosphor bronze contact, and tin-plated contact areas, it operates effectively within temperatures from -10°C to +105°C.

View 2163311083Datasheet [pdf]
