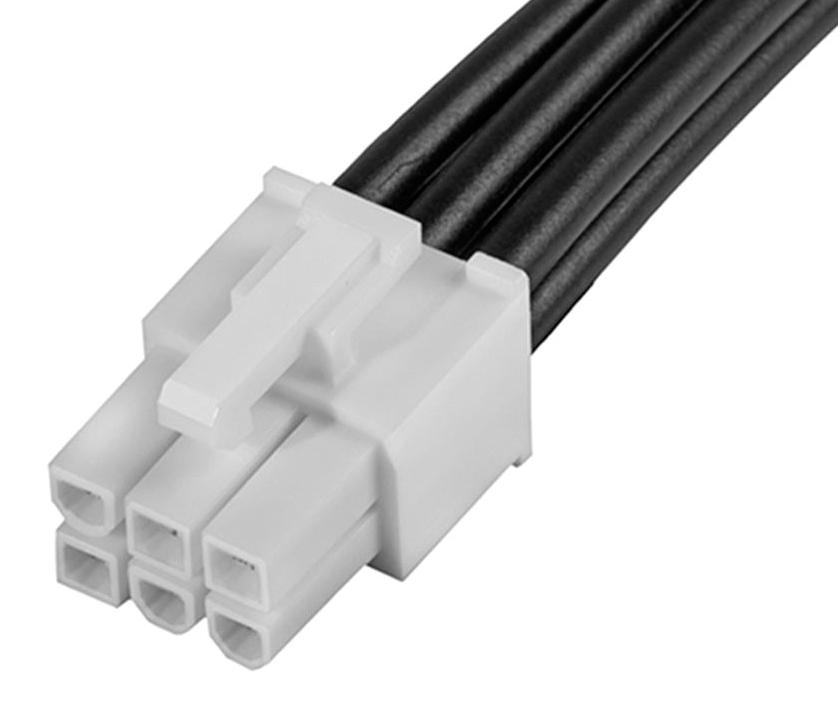

MOLEX 2153272063 Mini-Fit Jr. Power Connector
This Mini-Fit Jr. male-to-male off-the-shelf cable assembly measures 600mm in length and features dual-row connectors with a black resin housing. It supports 6 circuits, with gold-plated contacts for reliable conductivity and corrosion resistance. Designed for power applications, it is rated for a maximum of 9.0A and 600V per contact, meeting UL 1015 standards. The assembly employs crimp or compression termination interfaces suited for wire sizes between 1.80mm and 3.10mm, and features 4.20mm wire insulation diameter for secure and efficient connections. Compatible with Mini-Fit Jr. receptacle housing and TPA cable assemblies, this versatile power connector is ideal for industrial and electronic systems requiring reliable power distribution.
MOLEX 2153272063 Mini-Fit Jr. Power Connector Specifications:
- Cable Length: 600.00mm
- Number of Circuits: 6
- Color - Resin: Black
- Gender: Male-Male
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface: Crimp or Compression
- Insulation Diameter Range: 1.80-3.10mm
- Number of Rows: 2
- Mating Interface Pitch: 4.20mm
- Standards Compliance: UL 1015
- RoHS Compliance: Yes
- REACH SVHC Status: Not Contained
- Halogen-Free: No
- Application: Power, Wire-to-Wire
- Connector Type: Mini-Fit Jr. Power Connector
Buy the Buy Molex Mini-Fit Jr. Power Part Number 2153272063 Online
Discover the convenience of purchasing the Molex Mini-Fit Jr. Power Connector online. This durable 600mm cable assembly features dual rows, 6 circuits, and gold-plated contacts to ensure reliable electrical connections. Rated for 9A and 600V, it is perfect for power distribution in electronic and industrial systems. The crimp or compression termination provides secure wire attachment, compatible with various power devices. Easy to install, RoHS compliant, and suitable for demanding applications, this cable assembly offers excellent performance and value for professionals seeking high-quality power interconnects.
Buy Molex 2153272063 now and experience reliable power connections with durable gold-plated contacts and robust power ratings for industrial use.
