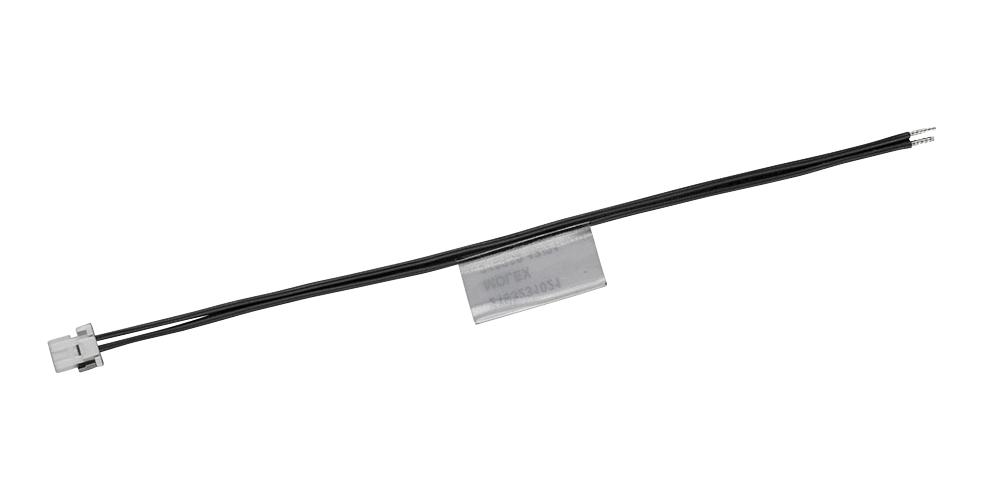

MOLEX 2183231021 DuraClik Connector
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch, providing a reliable off-the-shelf solution for electronic applications. It includes an audible click during mating to confirm proper connection and has an enclosed contact design that protects against dust and debris while preventing tangling during harness assembly. Made from white PBT housing, it uses copper alloy contacts with tin plating, supporting a maximum voltage of 60V AC/DC and a wire size of 22AWG. It operates from -40°C to +105°C, supports crimp or compression termination, and is suitable for automotive, industrial, and consumer electronics, with up to 20 mating cycles.
MOLEX 2183231021 DuraClik Connector Specifications:
- Assembly Type: Cable Assembly
- Series: 218323
- Application: Automotive, Signal, Wire-to-Board
- Connector Type: DuraClik ISL-to-Pigtail
- Cable Length: 150.00mm
- Circuits: 2
- Color: White
- Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Net Weight: 1.860 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.00mm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.30mm
- Wire Size AWG: 22
- Wire/Cable Type: 1x0.35mm FLRY-A
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 60V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 20 mating cycles
Buy the Molex Series 218323 DuraClik: 2183231021
Order the Molex DuraClik Connector series 2183231021 online and enjoy quick, reliable delivery of a high-quality wire-to-board connection solution. Its 2mm pitch and enclosed contact design ensure dust resistance, long-term durability up to 20 mating cycles, and dependable performance in harsh environments. Ideal for automotive, industrial, and consumer electronics, this assembly supports crimp or compression termination with 22AWG wires and operates from -40°C to +105°C. Get this essential connector today for secure, easy installation and exceptional reliability.
Buy Molex 2183231021 now and experience unmatched reliability and performance with a durable, easy-mating connector for automotive and industrial use.
