MOLEX 460140304 Mini-Fit Plus Connector
The Mini-Fit Plus Connector System by Molex is a high-quality, versatile electrical connector featuring a 4.20mm pitch, single row, vertical orientation, and three circuits. Designed with UL 94V-0-rated PA Polyamide Nylon 6/6 plastic, it includes a snap-in PCB lock and robust tin over nickel plating for durability and reliable electrical connection. Suitable for board-to-board and wire-to-board applications, this connector supports up to 12.5A current and 600V voltage, with a temperature range from -40°C to +105°C. Its compact design ensures ease of installation in various electronic assemblies.
MOLEX 460140304 Mini-Fit Plus Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 3
- Orientation: Vertical
- Material: PA Polyamide Nylon 6/6
- Flammability: UL 94V-0
- Material - Plating Mating: Tin
- Material - Plating Termination: Nickel
- Material - Resin: Nylon
- Color - Resin: Natural
- Durability (mating cycles): 100
- Max Current per Contact: 11.5A (board-to-board), 12.5A (wire-to-board)
- Max Voltage: 600V
- Temperature Range: -40°C to +105°C
- Solder Process Temperature Max: 240°C
- Net Weight: 0.85g
- Packaging: Tray
- PCB Tail Length: 1.78mm
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Stackable: No
- Shrouded: No
- Polarity to PCB: Yes
- Surface Mount Compatible: No

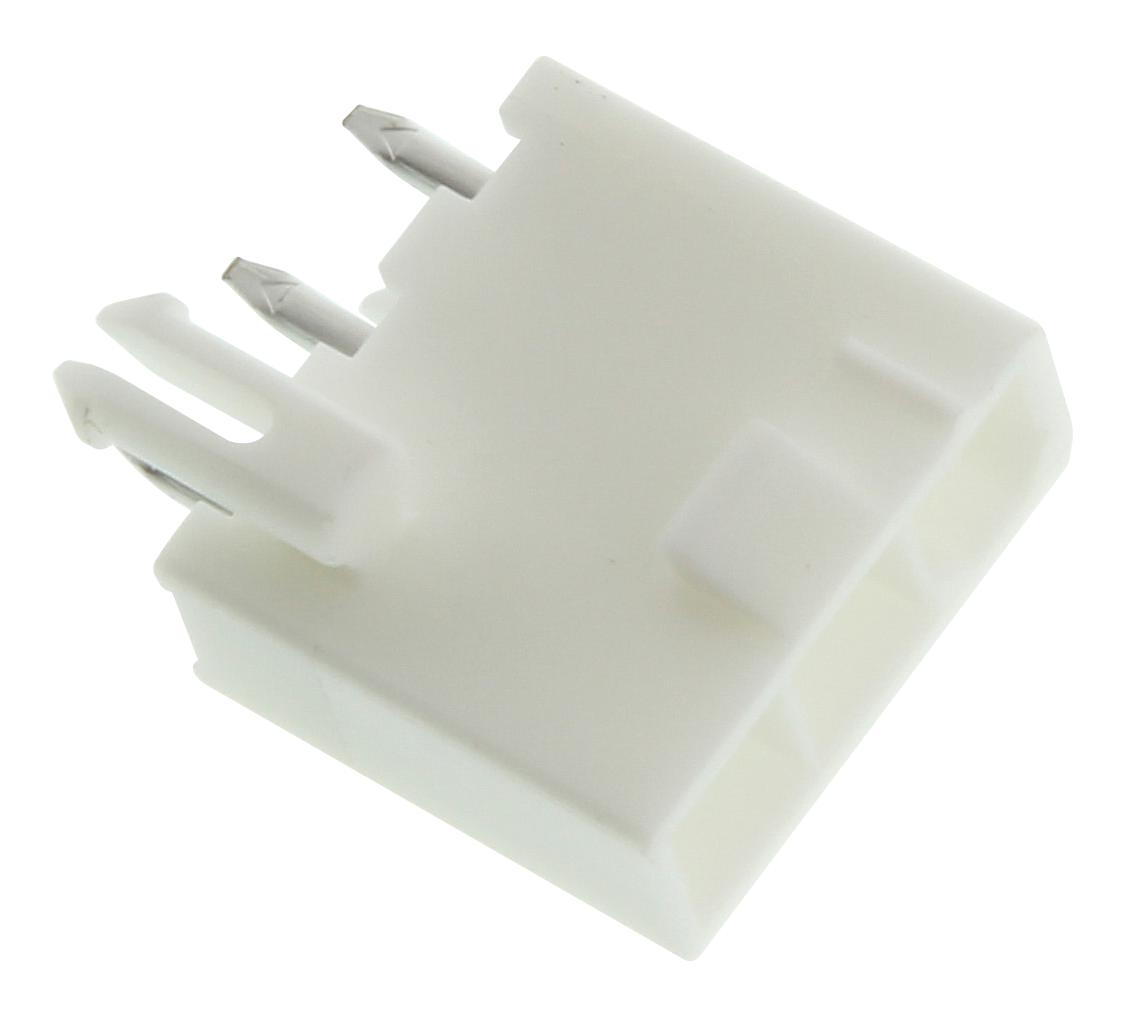

Buy the Buy Molex Mini-Fit Plus Connector Part Number 460140304 Online
Discover the high-performance Molex Mini-Fit Plus Connector, featuring a 4.20mm pitch, three circuits, and UL 94V-0 nylon construction. Designed for power and PCB applications, it supports up to 12.5A and 600V, ensuring safe and efficient electrical connections. With a vertical orientation, snap-in PCB lock, and durable tin over nickel plating, this compact connector is easy to install and reliable in various environments. Ideal for board-to-board and wire-to-board interfaces in complex electronic assemblies, it offers excellent durability and safety standards for your projects.
Buy Molex 460140304 now and experience unmatched reliability and power delivery for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 460140304?
You can click on the BUY or RFQ button to purchase 460140304 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 460140304?
You can download the 460140304 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 460140304?
MOLEX
