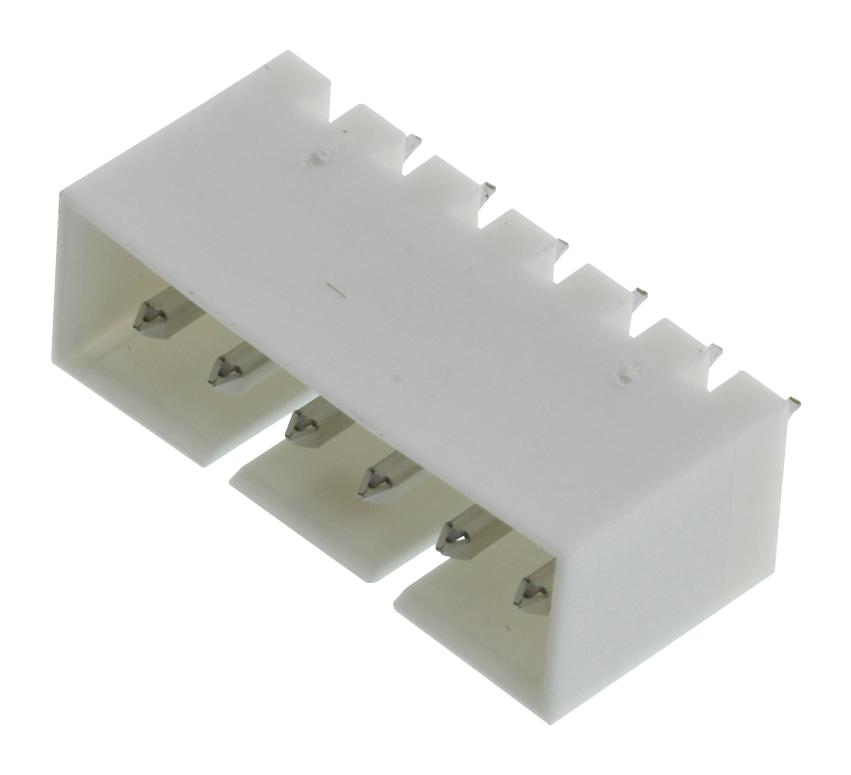

MOLEX 532580629 power connector
The Mighty-SPOX Connector System features a vertical, 3.50mm pitch, 6-circuit header made of brass with tin plating, designed for power and wire-to-board applications. It supports up to 6 circuits with a maximum of 30, and offers a durability of 30 mating cycles. Certified by UL and RoHS compliant, it operates within a temperature range of -40°C to +105°C. The connector features through-hole termination, PCB retention, and an orientation of vertical, with a net weight of 1470.8 mg. Ideal for reliable electrical connections in industrial electronics.
MOLEX 532580629 power connector Specifications:
- Pitch: 3.50mm
- Circuits: 6 (maximum 30)
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Operating Temperature: -40°C to +105°C
- Current - Maximum per Contact: 5.5A
- Voltage - Maximum: 250V
- Net Weight: 1470.8 mg
- Durability (mating cycles): 30
- Packaging: Tray
- Orientation: Vertical
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- UL Certification: Yes
- RoHS Compliant: Yes
- Halogen-Free: No
- Shrouded: No
- Stackable: No
Buy the Molex 532580629 – Reliable Power and Board-to-Wire Connector for Industrial Applications
Acquire the Molex 532580629 power connector for your industrial wiring needs. Designed for durability, this 3.50mm pitch, 6-circuit vertical header with UL and RoHS certification ensures safe and reliable power connections. It supports up to 30 mating cycles, with a maximum current of 5.5A per contact and operating temperature from -40°C to +105°C. Featuring a through-hole termination style, PCB retention, and compact tray packaging, this connector is ideal for robust power and wire-to-board applications across various industries.
Get Molex 532580629 today—built for precision, durability, and reliable electrical connections in industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 532580629?
You can click on the BUY or RFQ button to purchase 532580629 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 532580629?
You can download the 532580629 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 532580629?
MOLEX
