MOLEX 2164011042 Datasheet & Stock

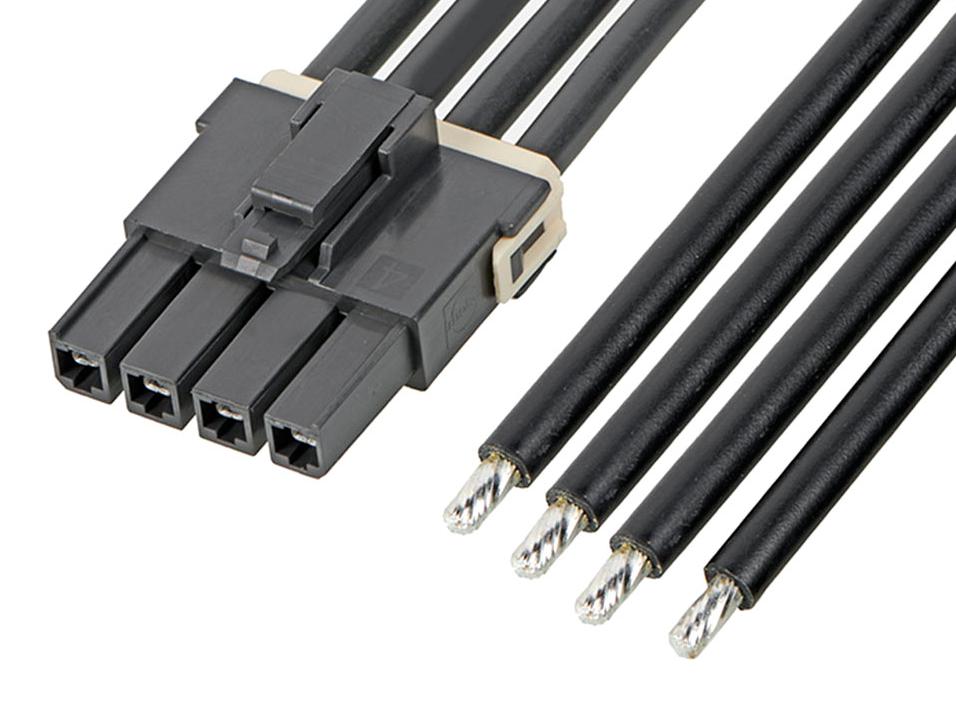

This off-the-shelf Mega-Fit single row cable assembly is designed for reliable power connectivity, delivering a current rating of 25A. It features a compact connector with polarizing and keying to protect terminals and ensure proper mating with all current Mega-Fit single row headers. The assembly supports various cable lengths suited for prototyping and production applications. Enhanced with a new latch design providing superior retention and low-mating force, the assembly includes a female-to-pigtail configuration with an internal locking mechanism that secures terminals and ensures low insertion force. The housing is made of high-quality, UL and CSA certified nylon material meeting V0 and glow-wire European standards. The contact is high-conductivity copper with tin plating for durability and corrosion resistance. Designed to operate at voltages up to 600V AC/DC, with a temperature range of -40°C to +105°C, it is ideal for use in commercial vehicles, home appliances, industrial, and telecommunications applications.

View 2164011042Datasheet [pdf]
