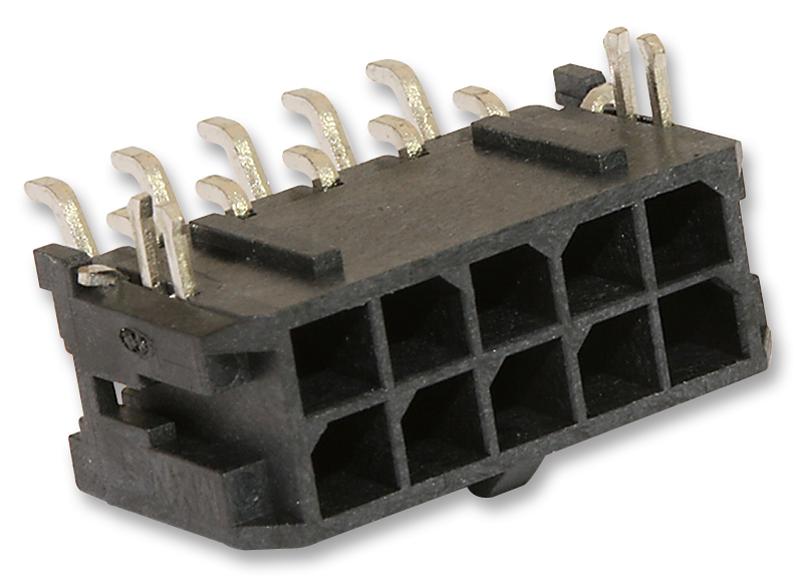

MOLEX 430451006 Micro-Fit Connector
The Micro-Fit 3.0 right-angle header features a 3.00mm pitch, dual row configuration with 10 circuits. Made from high-temperature thermoplastic with tin-plated brass contacts, it is shrouded, polarized, and surface-mount compatible. Designed for power and wire-to-board applications, it supports up to 8.5A and 600V, with a maximum operating temperature of +105°C. Its durable design includes PCB retention, PCB locator, and a reflow solder process capability, ensuring reliable performance in electrical and electronic systems requiring robust connector solutions.
MOLEX 430451006 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of circuits: 10
- Material - Metal: Brass
- Material - Plating: Tin
- Material - Resin: High-temperature thermoplastic
- Flammability: UL 94V-0
- Durability (mating cycles): Fully
- Current - Max: 8.5A
- Voltage - Max: 600V
- Operating Temperature Range: -40°C to +105°C
- Surface Mount Compatibility: Yes
- Shrouded: Yes
- Polarized to PCB: Yes
- PCB Thickness - Recommended: 1.60mm
- PCB Retention: Yes
- PCB Locator: Yes
- Reflow process temperature: 260°C for 03 seconds
Buy the Buy Molex Micro-Fit 3.0 Part Number 430451006 Online
Order the Molex Micro-Fit 3.0 connector today for high-performance power and wire-to-board connections. Designed with a 3.00mm pitch, 10 circuits, and tin-plated brass contacts, it offers excellent durability, a maximum current of 8.5A, and a voltage rating up to 600V. Its shrouded, polarized design ensures reliable connection in demanding environments, supporting reflow soldering and operating within -40°C to +105°C. Ideal for electronics requiring robust, long-lasting, and reliable connectors, available for quick online purchase.
Get Molex Micro-Fit 3.0 430451006 today—built for power, durability, and reliable wire-to-board connection performance.
Frequently Asked Questions
Where can I buy MOLEX 430451006?
You can click on the BUY or RFQ button to purchase 430451006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451006?
You can download the 430451006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451006?
MOLEX
