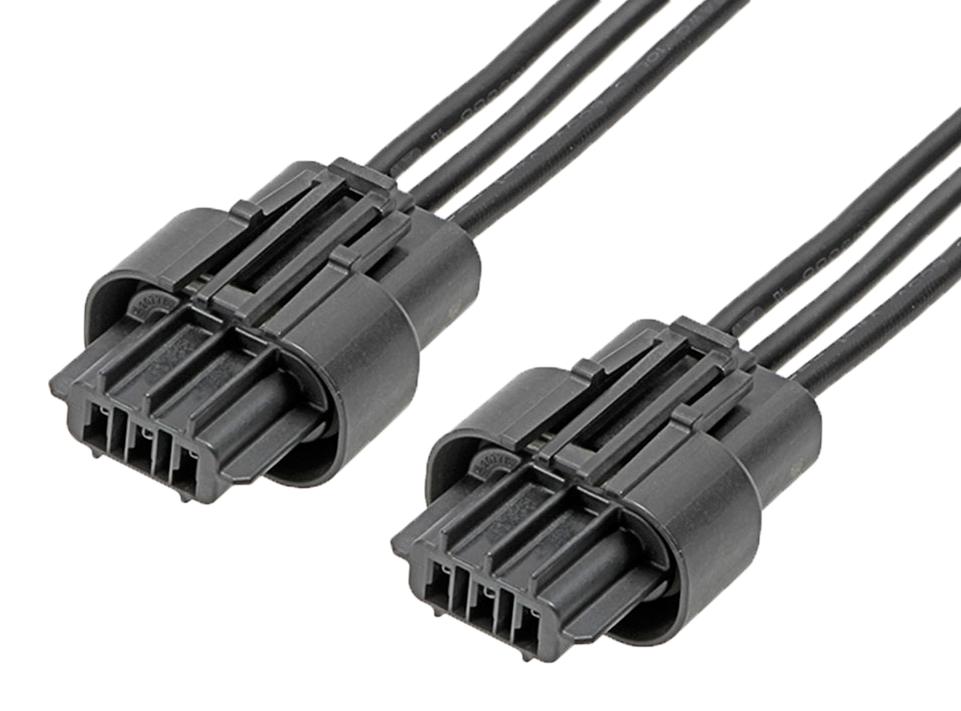

MOLEX 2166201033 Sealed Wire Connector
The Squba sealed wire-to-wire connector system features a 3.60mm pitch with IP67 protection, supporting up to 14.0A and 600V. Ideal for compact applications, it offers reliable power connections in harsh environments with dust and water ingress protection. The connector includes a low-profile positive latch to prevent wire damage, sealed components to ensure durability, and UL and CSA certification. Its nylon housing and copper alloy contacts support multiple mating cycles, providing a robust, space-efficient solution for industrial, commercial, and consumer applications.
MOLEX 2166201033 Sealed Wire Connector Specifications:
- Pitch: 3.60mm
- Number of Circuits: 3
- Cable Length: 600.00mm
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Water and Dust Ingress Protection: IP67
- Number of Mating Cycles: 25
- Color - Resin: Black
- Wire Insulation Diameter: 1.90mm-2.40mm
- Wire Size AWG: 16
- Type: Sealed wire-to-wire connector
- Application: Consumer, Commercial Vehicle, Industrial Equipment
- Certification: UL, CSA
Buy the Molex Series Squba Sealed Wire-to-Wire Connectors: 2166201033
Purchase the Molex Squba sealed wire-to-wire connector online today for a compact, IP67-rated design supporting up to 14 amps and 600 volts. This connector features a low-profile, positive latch to prevent wire damage and ensures dust and water ingress protection, making it ideal for space-constrained and harsh environment applications across industrial, commercial, and consumer sectors. Certified by UL and CSA, it offers up to 25 mating cycles with durable nylon housing and copper alloy contacts, delivering reliable power connections in demanding conditions.
Buy Molex 2166201033 sealed wire-to-wire connector now and experience unmatched reliability and durability in harsh environments.
Frequently Asked Questions
Where can I buy MOLEX 2166201033?
You can click on the BUY or RFQ button to purchase 2166201033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2166201033?
You can download the 2166201033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2166201033?
MOLEX
