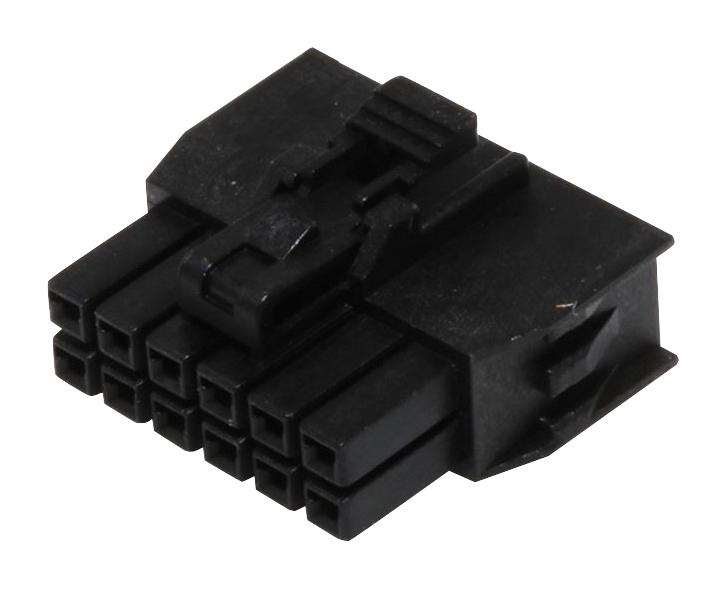

MOLEX 1053081212 Nano-Fit Power Connector
The MOLEX 105308-1212 Nano-Fit Power Connector is a receptacle housing designed for secure and reliable wire-to-board connections. This connector offers a compact design with a 2.50mm pitch and dual-row configuration, making it ideal for applications where space is limited. It is glow-wire capable and features a robust nylon resin construction, ensuring durability and performance in demanding environments. The connector is RoHS compliant and designed to mate with Nano-Fit headers and utilize Nano-Fit crimp terminals, providing a complete and integrated connection solution.
MOLEX 1053081212 Nano-Fit Power Connector Specifications:
- circuits_maximum: 12
- color_resin: Black
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 1.050/g
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.50mm
- pitch_termination_interface: 2.50mm
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°C, -40° to +115°C
- current_maximum_per_contact_a: 6.5A
- operating_temperature_c: -40#C to +105#C
- series: 105308
- mates_with: Nano-Fit Headers 105310 , 105312 , 105314
- use_with: Nano-Fit Crimp Terminal 105300, NanoFit TPA Retainer 105325
