MOLEX 2169900002 USB Type-C Connector
This USB Type-C connector is designed for high-speed, robust, and waterproof data and power transfer applications across consumer, industrial, and IoT devices. It supports up to 5.0A current and 40 Gbps data rates, featuring IPx8 water protection, metal shell robustness, and flexible mounting options like top, mid, and vertical mount types. The connector's durable, waterproof design ensures reliable performance even in harsh environments, making it ideal for portable power banks, smartphones, and industrial equipment requiring high-speed data and reliable power delivery. Its slim profile and easy assembly facilitate seamless integration into various electronic devices.
MOLEX 2169900002 USB Type-C Connector Specifications:
- Supports up to 5.0A/100W power and 40 Gbps data rates
- Waterproof rating: IPx8, protection against dust and water ingress
- Metal shell provides robustness and stable PCB connection
- Supports multiple mounting options: top, mid, and vertical mount
- Housing: High-temperature Nylon, LCP, PA46, or PAST
- Contact material: Copper Alloy, Gold or Palladium/Nickel plating
- Durability: At least 10,000 mating cycles
- Operating temperature: -30°C to +85°C or -40°C to +85°C depending on variant
- Voltage maximum: 30V (DC/AC)
- Current maximum: 3.0A to 6.0A depending on series
- Insertion Force: 5 to 20N, Mating/Unmating force varies
- Contact resistance: Max 50 milliohms after testing
- Insulation resistance: ≥100 Megohms
- Housing materials: Nylon, LCP, PA46, PAST.
- Supported PCB thickness: 0.60 to 1.60mm

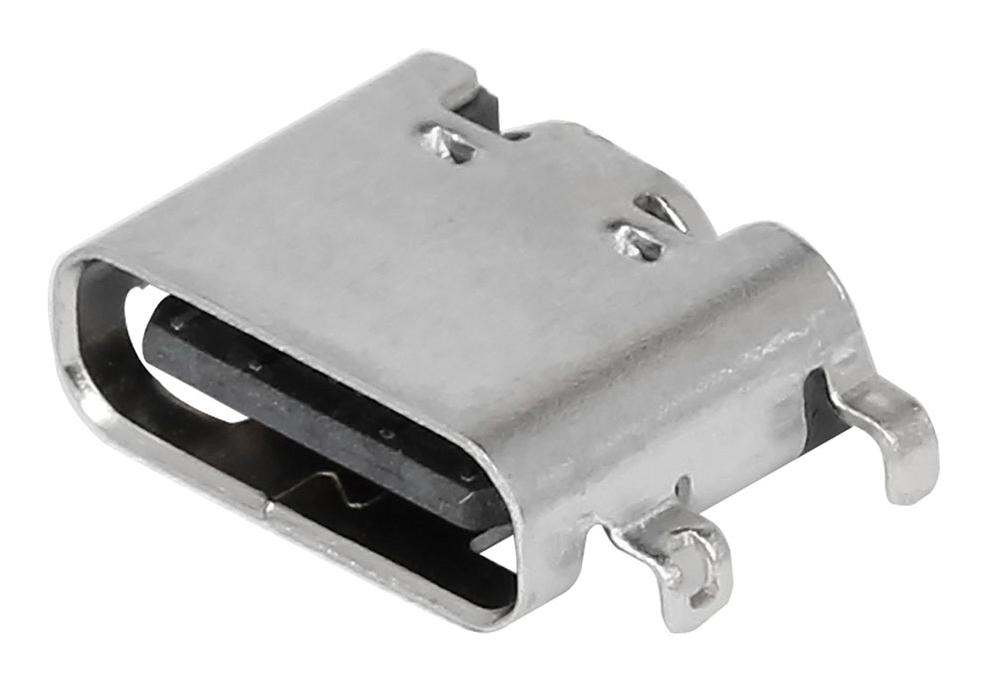

Buy the Buy Molex USB Type-C Part Number 2169900002 Online
Discover the high-performance Molex USB Type-C Connector, supporting up to 5.0A current and 40 Gbps data speeds. Its waterproof design and robust metal shell make it ideal for demanding environments in consumer electronics, industrial equipment, and IoT applications. With easy mounting options and durable construction, this connector ensures reliable power and data transfer even under challenging conditions. Perfect for smartphones, power banks, and industrial devices seeking a compact, high-speed, and waterproof connection solution, available now for seamless online purchase.
Buy Molex 2169900002 now and experience unmatched reliability and high-speed, waterproof data transfer for industrial and consumer applications.
Frequently Asked Questions
Where can I buy MOLEX 2169900002?
You can click on the BUY or RFQ button to purchase 2169900002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2169900002?
You can download the 2169900002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2169900002?
MOLEX
