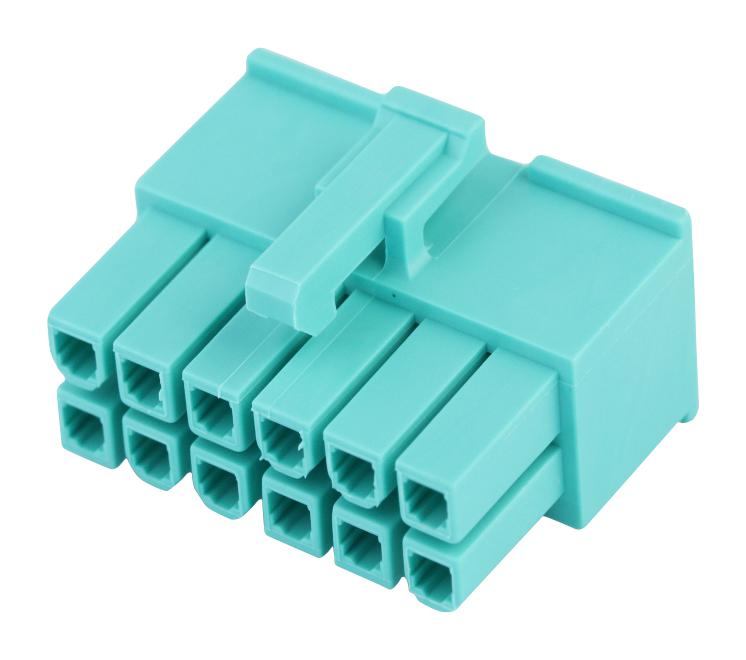

MOLEX 469921030 Mini-Fit Versa Color Receptacle
The MOLEX 46992-1030 Mini-Fit Versa Color Receptacle Housing is a robust and reliable connector solution for a variety of applications including power distribution, wire-to-board connections, and wire-to-wire harnesses. Constructed from Nylon 6/6, this housing offers excellent durability and insulation properties. Its dual-row design accommodates 10 circuits, making it suitable for applications requiring multiple connections. The green color provides visual differentiation and ease of identification. It is Glow-Wire Capable and polarized to the mating part, ensuring proper alignment and secure connections. This connector is ideal for automotive, industrial, and consumer electronics applications where a dependable and color-coded power connector is required.
MOLEX 469921030 Mini-Fit Versa Color Receptacle Specifications:
- circuits_maximum: 10
- color_resin: Green
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.140
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°C
- upc: 195842021938
- series: 46992
- material_info_drawing_numbers_packaging_specification: PK-5557-002-000
- material_info_drawing_numbers_product_specification: PS-5556-001-001
- material_info_sales_drawing: SD-46992-0000-000
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
Buy the 46992-1030 MOLEX Mini-Fit Versa Color Receptacle | myMectronic
Purchase the MOLEX 46992-1030 Mini-Fit Versa Color Receptacle Housing securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 469921030?
You can click on the BUY or RFQ button to purchase 469921030 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 469921030?
You can download the 469921030 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 469921030?
MOLEX
