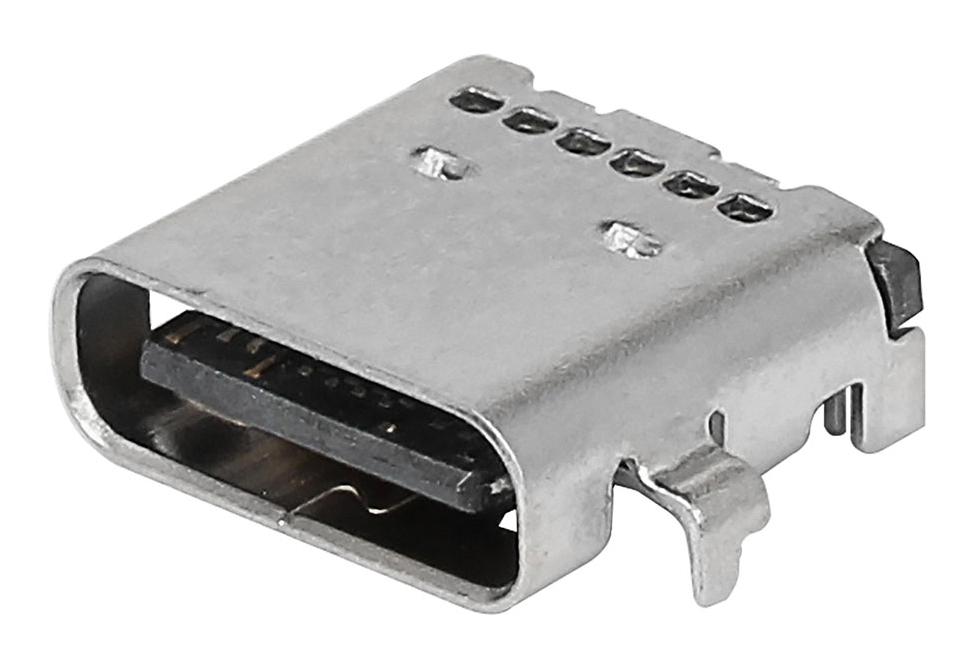

MOLEX 2171840001 USB Type-C Receptacle
The MOLEX 217184-0001 is a USB Type-C receptacle engineered for versatility and performance. Featuring a robust metal shell and LSR molded seal ring, it provides excellent protection against dust, water ingress, and mechanical stress. This connector supports high-speed data transfer rates and power delivery capabilities, making it suitable for a wide range of applications, from consumer electronics like smartphones and laptops to industrial equipment and automotive systems. Its compact design and flexible mounting options contribute to efficient integration into diverse device designs.
MOLEX 2171840001 USB Type-C Receptacle Specifications:
- Current Rating: Up to 5.0A
- Power Delivery: Up to 100W
- Data Rate: Up to 40 Gbps
- IP Rating: IPx8, IPx5
- Connector Type: USB Type-C Receptacle
- Mounting Options: Top-mount, mid-mount, vertical
- Circuit Count: 6, 14, 16, 24
- Shell Material: Metal
- Seal Ring Material: LSR (liquid silicon rubber)
- Soldering Design: SMT, Through-hole
- Applications: Consumer electronics, industrial equipment, automotive systems
- Design Features: Long outer shell, mid-plate tongue design, 4-stopper design, EMI shield, low-profile height
Buy the 217184-0001 MOLEX USB Type-C Receptacle | myMectronic
Purchase the MOLEX 217184-0001 USB Type-C Receptacle securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2171840001?
You can click on the BUY or RFQ button to purchase 2171840001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2171840001?
You can download the 2171840001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2171840001?
MOLEX
