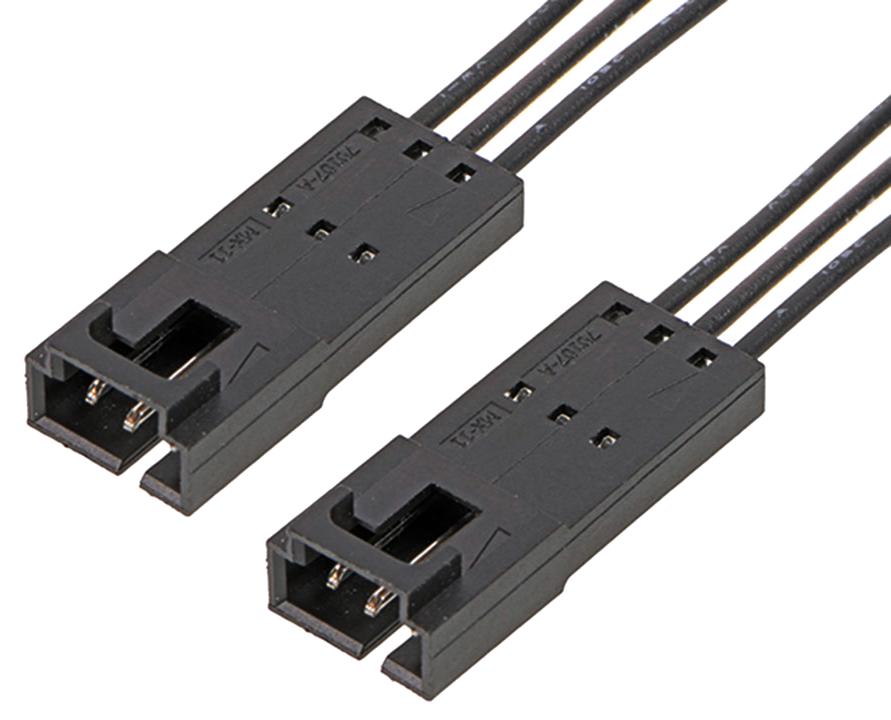

MOLEX 2162721034 Stackable Discrete Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly supports prototyping and mass production. Designed with dual contact points, it provides reliable electrical performance. The assembly features a CPA lock for secure connection in high-vibration environments and is suitable for industrial, automotive, data, and medical applications. Made of polyester alloy with phosphor bronze contacts, tin-plated for durability, it supports up to 600V and 3A. With a temperature range of -40°C to +105°C, it is rated for 25 mating cycles and offers secure, high-reliability wire-to-wire and wire-to-board connections in a compact, low-profile design.
MOLEX 2162721034 Stackable Discrete Cable Assembly Specifications:
- Connector Type: SL Male-to-SL Male
- Cable Length: 600.00mm
- Number of Circuits: 3
- Color: Black
- Material - Contacts: Phosphor Bronze, Tin-plated
- Material - Housing: Polyester Alloy
- Voltage Rating: 600V AC/DC
- Current Capacity: 3A
- Temperature Range: -40°C to +105°C
- Number of Mating Cycles: 25
- Locking Mechanism: Positive lock with CPA lock
- Housing: Low-profile, stackable
- Wire Insulation Diameter: 1.63mm max.
- Wire Size: 22 AWG
- Termination Style: Crimp or Compression
- Housing Color: Black
- Certification: UL 11028
- RoHS Compliant: Yes
- Halogen-Free: No
Buy the Molex Series 216272 Signal Wire-to-Wire: 2162721034
Purchase the Molex Stackable Discrete Cable Assembly online today to ensure high-quality, secure connections in your industrial, automotive, or medical applications. This durable, positive-lock connector features dual contact points for redundancy, supporting up to 600V and 3A. Its compact, low-profile design is ideal for high-vibration environments, with a rated 25 mating cycles for long-term reliability. Made of tough polyester alloy and tin-plated contacts, this assembly guarantees excellent performance and durability in demanding conditions. Shop now for fast, secure online access.
Buy Molex 2162721034 now and experience unmatched reliability and performance with a secure, high-vibration design suitable for industrial and automotive use.
