MOLEX 460123241 Power Connector

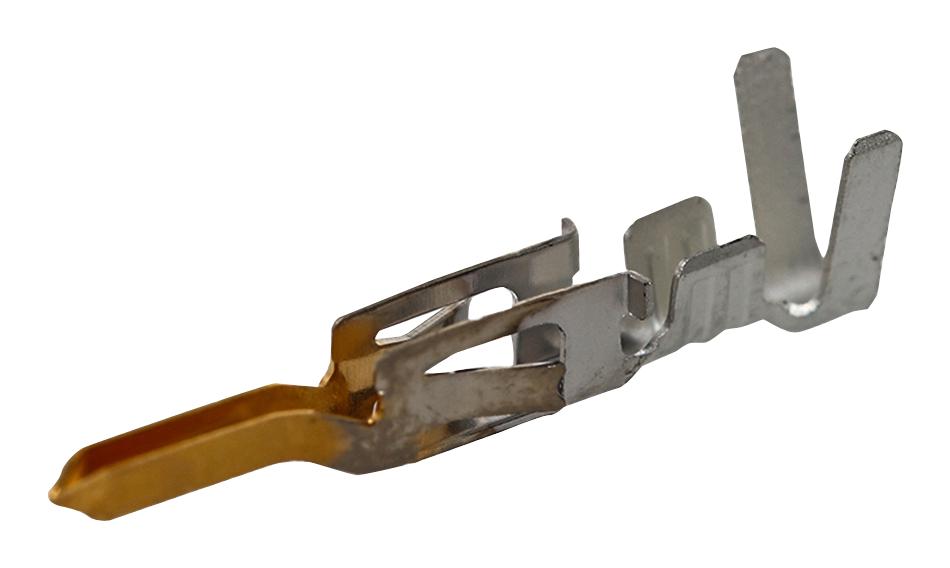

The Mini-Fit Plus Crimp Terminal is designed for reliable electrical connections in power and wire-to-wire applications. Compatible with 16 AWG wire, it features selective gold plating for enhanced conductivity and corrosion resistance. The terminal supports up to 13A current per circuit at a maximum voltage of 600V. It is supplied on a reel, ensuring ease of handling and terminal placement. Suitable for manufacturing and maintenance, this crimp terminal is constructed from high-quality copper with gold plating on the mating interface and tin plating on the termination end, ensuring durability and longevity.
MOLEX 460123241 Power Connector Specifications:
- Material - Metal: Copper
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Net Weight: 0.144/g
- Packaging Type: Reel
- Wire Size AWG: 16
- Wire Size mm: 2.20-3.15mm
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V
- Durability (mating cycles max): Not specified
- Gender: Male
- Crimp or Compression: Crimp
- Plating min - Mating: 0.762um
- Plating min - Termination: 2.540um
- Physical Dimensions: Length varies with wire size, typical tail length approximately 4.0 mm
- Certifications: RoHS Compliant, Low-Halogen, REACH SVHC not contained
Buy the Molex 4600123241 – Reliable Power Connector for Industrial Applications
Discover the convenience of purchasing the Molex Mini-Fit Plus Crimp Terminal online. Designed for 16 AWG wires, it supports up to 13A and 600V, making it ideal for power and wire-to-wire applications. The reel-packaging ensures quick handling, while the gold and tin plating guarantee corrosion resistance and durability. This high-quality copper terminal is perfect for both manufacturing and maintenance, offering reliable, long-lasting electrical connections. Order now to enhance your electrical projects with proven industrial-grade components.
Buy Molex 4600123241 now and experience unmatched reliability and performance in power wiring and electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 460123241?
You can click on the BUY or RFQ button to purchase 460123241 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 460123241?
You can download the 460123241 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 460123241?
MOLEX
