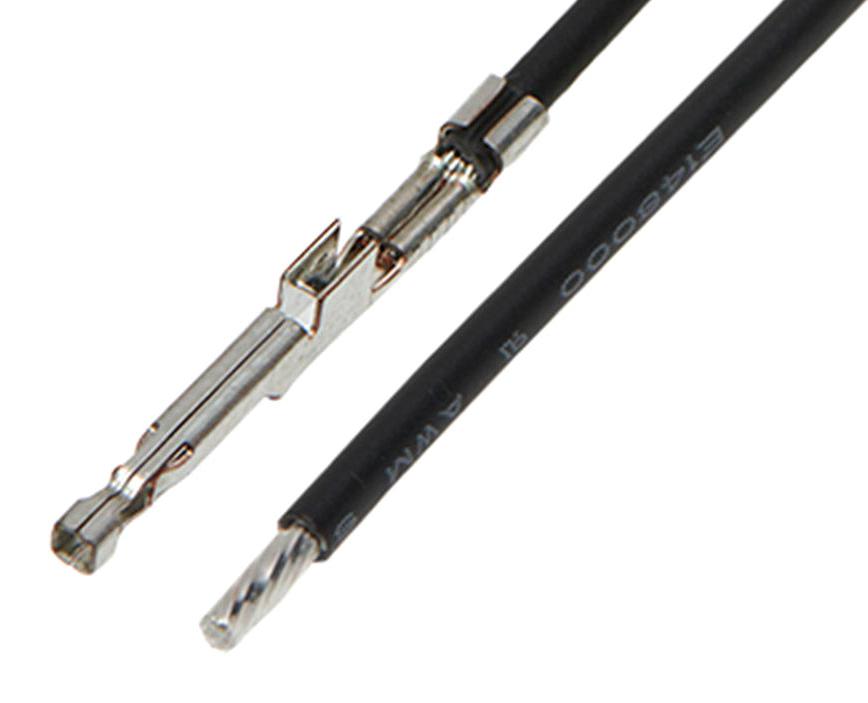

MOLEX 2174711125 Pre-Crimped Female Pigtail Cable
Molex's pre-crimped leads in the 217471 series provide a reliable and efficient solution for prototyping, pre-production, and mass manufacturing. These ultra-fit female-to-pigtail cable assemblies feature a durable black resin housing, high-conductivity copper with tin plating, and UL 1061 standard wire. Designed for high performance, they support a maximum voltage of 600V AC (RMS/DC) and a current of 12A per contact with 16 AWG wire. Fully tested and easy to install, these cables reduce time-to-market, offering excellent flexibility for various connector applications in automation, electronics, and industrial systems.
MOLEX 2174711125 Pre-Crimped Female Pigtail Cable Specifications:
- Wire Length: 450.00mm
- Wire Gauge: 16 AWG
- Wire Insulation Diameter: 2.03-2.39mm
- Material - Metal: High Conductivity Copper
- Material - Plating: Tin
- Housing Color: Black
- Packaging: Bag
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC (RMS)/DC
- Application: Connector to Connector
- Assembly Type: Pre-crimped Lead
- Certification: UL 1061
- Gender: Female-Pigtail
- Net Weight: 6.887 grams
Buy the Buy Molex Female-to-Pigtail Part Number 2174711125 Online
Order Molex 2174711125 online today for a dependable, pre-tested female-to-pigtail cable assembly suitable for prototyping and mass production. Featuring black resin housing, high-conductivity tin-plated copper contacts, and UL 1061 standard wire, these 16 AWG cables support up to 600V and 12A. Easy to install, highly versatile, and designed for connector-to-connector applications, they help reduce time-to-market and ensure reliable electrical connections. Whether for electronics, industrial systems, or automation, buy online now for immediate project needs.
Buy Molex 2174711125 now and experience unmatched reliability and ease of use with high-current, UL-approved pre-crimped cable assemblies.
Frequently Asked Questions
Where can I buy MOLEX 2174711125?
You can click on the BUY or RFQ button to purchase 2174711125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174711125?
You can download the 2174711125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174711125?
MOLEX
