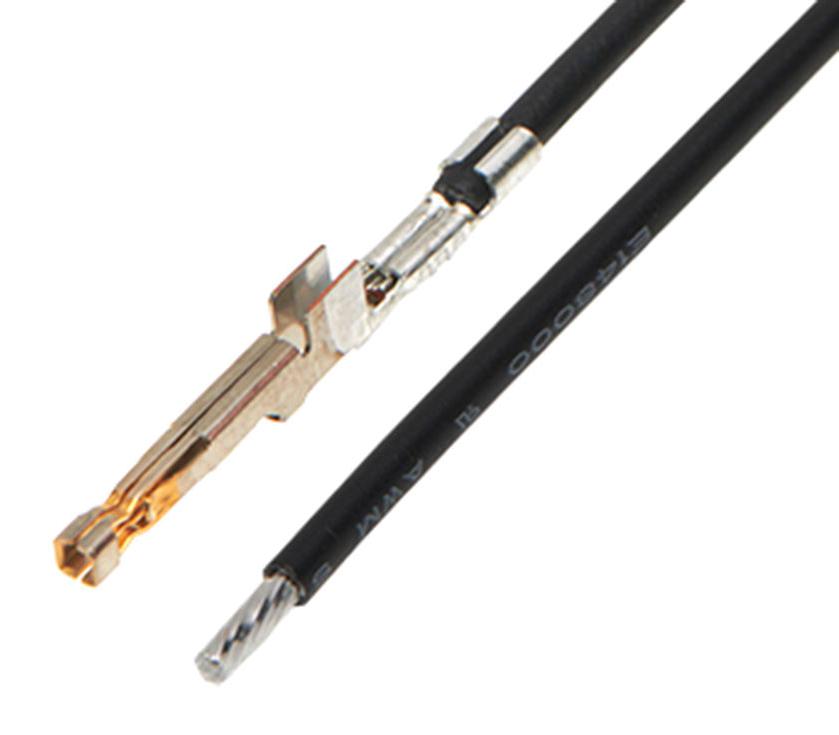

MOLEX 2174711204 Female-to-Pigtail Connector
Molex's pre-crimped leads provide an economical and efficient solution for prototyping, pre-production, and mass manufacturing. This model features an ultra-fit female-to-pigtail cable assembly with a black resin housing. Constructed from high-conductivity copper with gold plating, it supports up to 600V AC and DC and delivers a maximum current of 12A per contact. Using 20 AWG wire and UL 1061 standards, these fully tested, pre-crimped cables simplify assembly, reduce lead times, and ensure reliable performance for various connector applications across industries.
MOLEX 2174711204 Female-to-Pigtail Connector Specifications:
- Cable Length: 300.00mm
- Wire Size: 20 AWG
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Gold
- Color - Resin: Black
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 2.03-2.39mm
- Maximum Voltage: 600V AC (RMS) and DC
- Maximum Current: 12.0A
- Packaging Type: Bag
- Application: Connector to Connector
- Gender: Female-Pigtail
- Compatibility: Supports various Molex connector families
- RoHS Compliant: Yes
- UL Standard: UL 1061
- Net Weight: 1.918g
Buy the Molex Series Ultra-Fit Female-to-Pigtail Connector: 2174711204
Order the Molex 2174711204 female-to-pigtail connector today and enjoy a versatile, reliable, and easy-to-assemble solution suitable for prototyping, pre-production, and mass manufacturing. Featuring high-conductivity copper with gold plating, a 600V rating, and 20 AWG wire size, this pre-crimped lead ensures quick installation, consistent performance, and compliance with UL standards. Perfect for various connector applications, it reduces development time and ensures dependable electrical connections for industrial and electronic projects.
Get Molex 2174711204 today—designed for reliable connections and quick assembly in prototyping and production environments.
Frequently Asked Questions
Where can I buy MOLEX 2174711204?
You can click on the BUY or RFQ button to purchase 2174711204 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174711204?
You can download the 2174711204 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174711204?
MOLEX
