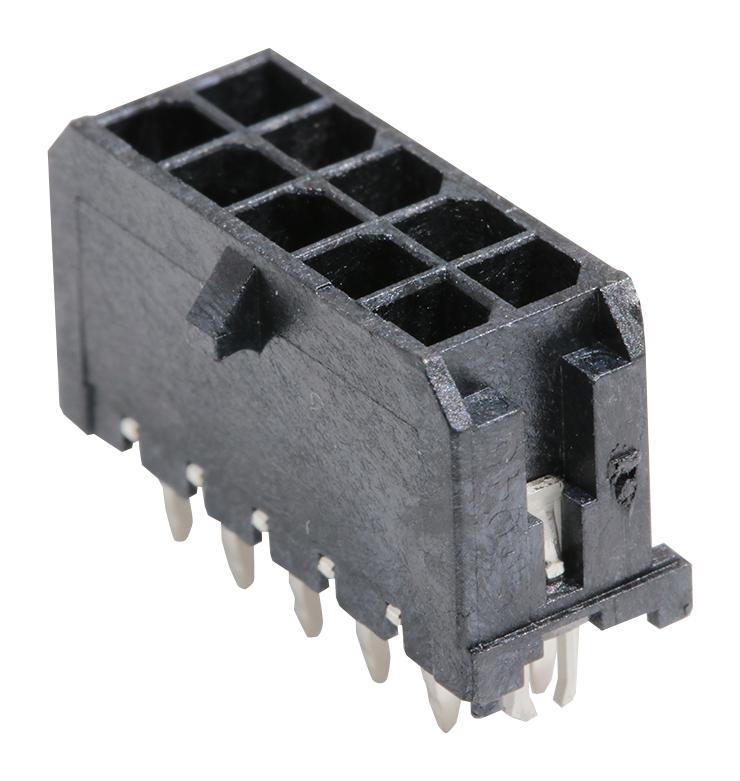

MOLEX 430451026 Micro-Fit 3.0 Vertical Header
The MOLEX 43045-1026 is a Micro-Fit 3.0 vertical header, part of the 43045 series, engineered for secure and efficient wire-to-board connections in a variety of applications. This header features a dual-row design with 10 circuits, a 3.00mm pitch, and a black high-temperature thermoplastic resin body. The mating interface is gold-plated for enhanced conductivity and durability, while the termination interface utilizes a tin-plated, kinked pin for reliable through-hole mounting. It is Glow-Wire Capable and compliant with RoHS standards, making it suitable for use in a wide range of electrical appliances and equipment. The header is designed to mate with Micro-Fit 3.0 receptacle housings, ensuring compatibility within the MOLEX product ecosystem.
MOLEX 430451026 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Series: 43045
- Application: Power, Wire-to-Board
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.64mm
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 2
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.762µm
- Polarized to PCB: Yes
- Stackable: No
- SMC Compatible: Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole - Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
