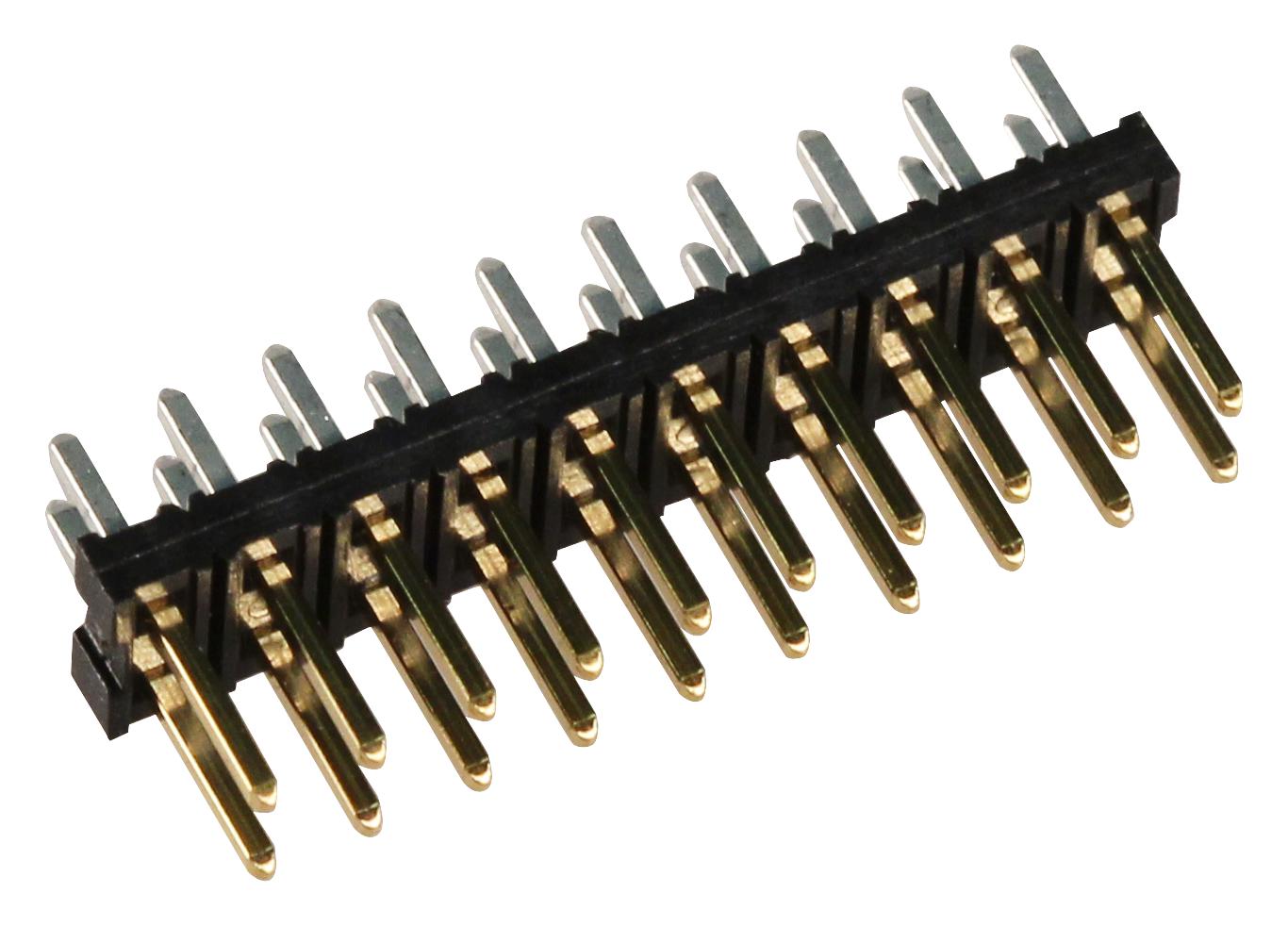

MOLEX 877583416 Milli-Grid Header
The Milli-Grid Connector System features a 2.00mm pitch header designed for reliable board-to-board connections. This through-hole, vertical connector accommodates 34 circuits with 0.38 micrometer gold plating for excellent conductivity and corrosion resistance. Made from durable nylon with phosphor bronze contacts, it withstands temperatures from -55°C to +105°C. The connector is RoHS and REACH compliant, UL certified, and suitable for various electronics applications requiring high durability, stacking, and secure mating. Its compact design ensures efficient, space-saving connections in complex electronic assemblies.
MOLEX 877583416 Milli-Grid Header Specifications:
- Pitch: 2.00mm
- Number of Circuits: 34
- Current per Contact: 2.0A
- Maximum Voltage: 125V
- Body Material: Nylon
- Contact Material: Phosphor Bronze
- Plating: Gold
- Plating Thickness: 0.381 micrometers
- Temperature Range: -55°C to +105°C
- Mounting Type: Through Hole
- Durability (mating cycles max): Not specified but suitable for robust applications
- Flammability: UL 94V-0
- Surface Finish: Tin
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
- UL Certification: Yes
- Physical Dimensions: Height 2.60mm, Tail Length 1.60mm
- Product Family: PCB Headers
- Application: Board-to-Board, Signal
- Packaging: Pocket Tray
Buy the Molex Series Milli-Grid PCB Headers: 877583416
Enhance your electronic assemblies with the Molex Milli-Grid Header, offering robust 2.00mm pitch, 34 circuits, gold-plated contacts, and through-hole mounting for secure, high-performance board-to-board connections. Engineered for durability, this component withstands temperatures from -55°C to +105°C, is RoHS and UL certified, and features a compact design suitable for space-constrained applications. Its reliable contact material and gold plating ensure excellent electrical conductivity and corrosion resistance, making it ideal for demanding electronic projects requiring durability and precision.
Buy Molex 877583416 now and experience unmatched reliability and performance for your high-quality electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 877583416?
You can click on the BUY or RFQ button to purchase 877583416 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 877583416?
You can download the 877583416 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 877583416?
MOLEX
