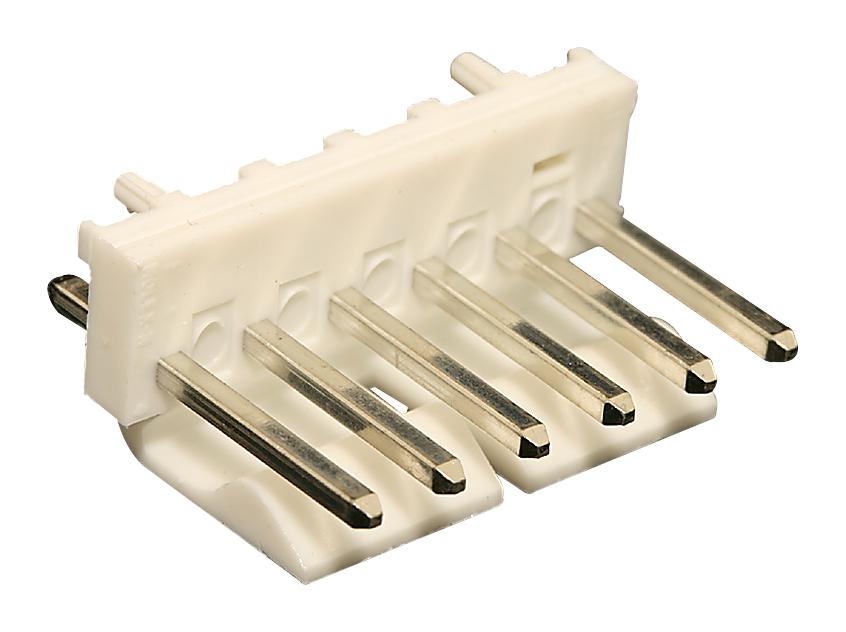

MOLEX 26644070 KK 396 Header
The MOLEX 26-64-4070 KK 396 header is a versatile interconnect solution for power and wire-to-board applications. Designed with a vertical orientation and friction lock, it provides a secure and reliable connection. The press-fit plastic pegs ensure easy and precise mounting onto the PCB. With tin plating on both mating and termination interfaces, this header offers excellent solderability and corrosion resistance. It is suitable for a wide range of industrial applications requiring robust and space-efficient connectivity.
MOLEX 26644070 KK 396 Header Specifications:
- application: Power, Wire-to-Board
- circuits_loaded: 7
- circuits_maximum: 7
- durability_mating_cycles: 25
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length: 3.56mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- pitch_mating_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Partial
- stackable: Yes
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact: 7.0A
- voltage_max: 250V
- lead_free_process_capability_wave_cycles: 001
- process_temperature_max_c: 235
- engineering_number: 42491-0007
