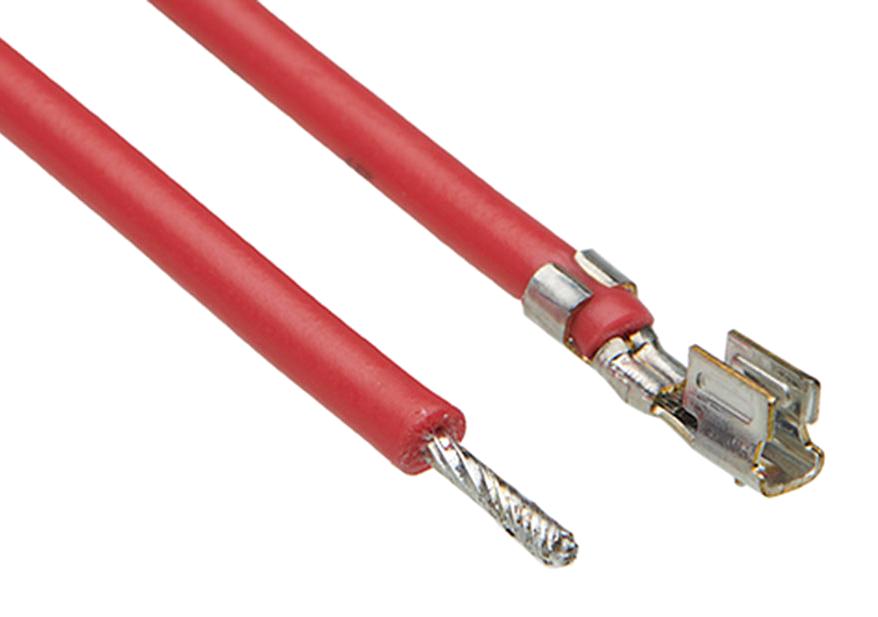

MOLEX 2175112103 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2103 is a pre-crimped lead assembly specifically engineered for use with L1NK 250 connectors. This component offers a convenient, ready-to-use solution for establishing electrical connections, eliminating the need for on-site crimping. With a length of 225mm and 26 AWG wire, it's suitable for applications requiring moderate current carrying capacity and flexibility. The red PVC resin provides insulation and durability, making it ideal for various industrial and commercial applications where reliable connectivity is essential.
MOLEX 2175112103 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250
- circuit_count: 1
- color: Red
- material_metal: Copper Alloy
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: PVC
- net_weight: 0.750/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 26
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119673
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- drawing_number: 2175112101-000
