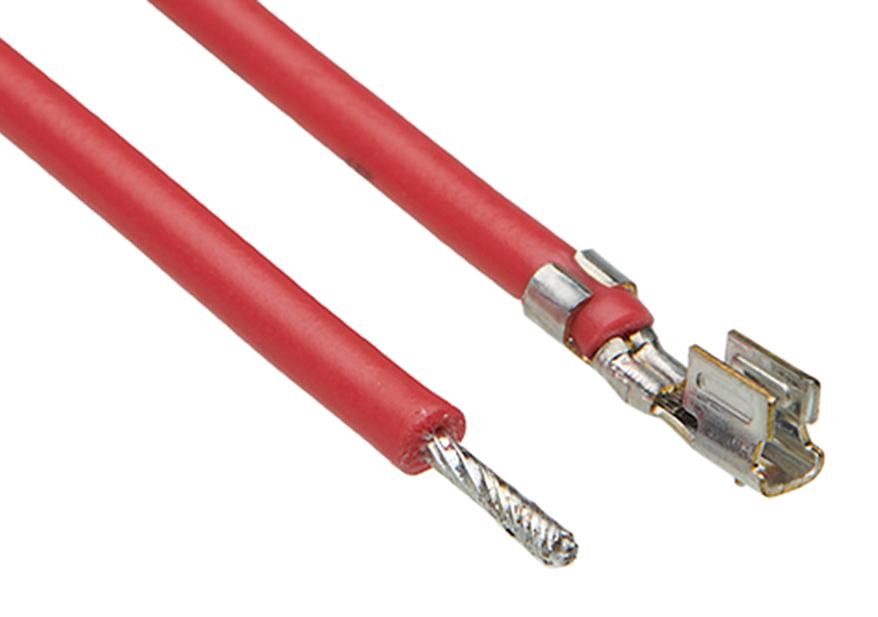

MOLEX 2175112114 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2114 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This lead is pre-terminated with a female-to-pigtail configuration, simplifying integration into various systems. The tin plating on both mating and termination surfaces ensures excellent conductivity and corrosion resistance. Ideal for applications requiring a pre-crimped connection, this assembly reduces assembly time and ensures consistent quality.
MOLEX 2175112114 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: PVC
- net_weight: 1.593/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119734
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2175112111-000
