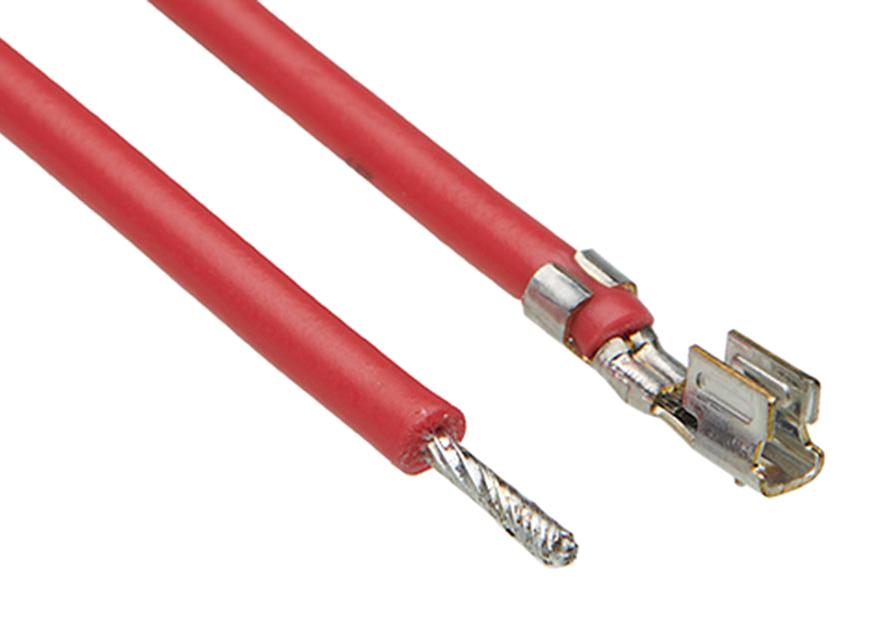

MOLEX 2175112123 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2123 is a pre-crimped lead assembly within the L1NK 250 series, offering a convenient and reliable connection solution. This assembly simplifies integration by providing a pre-terminated lead, eliminating the need for on-site crimping. It's ideal for applications requiring a secure and consistent connection, such as industrial automation, automotive systems, and consumer electronics. The red PVC insulation provides durability and easy identification.
MOLEX 2175112123 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 1.306/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 22
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119772
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2175112121-000
