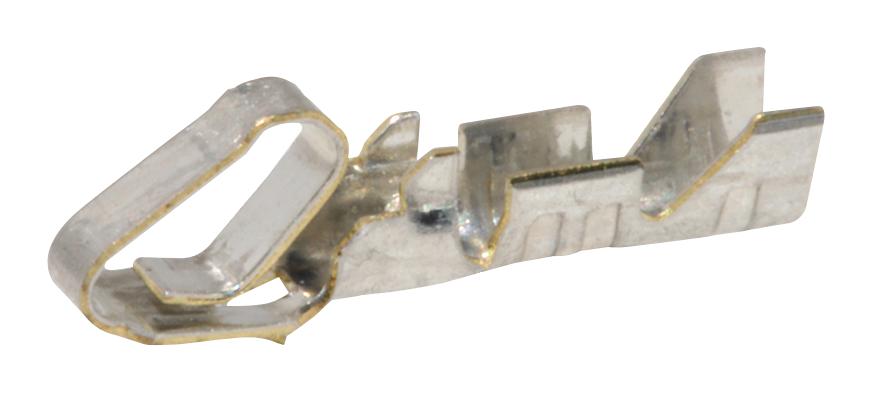

MOLEX 97000001 Crimp Terminal
The Molex KK 254 Cat Ear Crimp Terminal 4809 is designed for reliable wire-to-board connections, supporting 22-30 AWG wires with a maximum current of 3.0A and voltage of 250V. Made from brass with tin plating for durability and corrosion resistance, it features bottom feed reel packaging for efficient assembly. Suitable for crimp or compression applications, these terminals are compatible with Molex KK 2.54mm pitch headers and work with 1.57mm max. wire insulation diameter, ensuring secure and efficient electrical connections in industrial and electronics projects.
MOLEX 97000001 Crimp Terminal Specifications:
- Wire Range: 22, 24, 26, 28, 30 AWG
- Wire Insulation Diameter: 1.57mm max.
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Maximum Current: 3.0A
- Maximum Voltage: 250V
- Net Weight: 0.072 grams per terminal
- Packaging Type: Reel, 1.016 meters
- Durability: Supports a maximum of 25 mating cycles
- Termination Interface: Crimp or Compression
- Applicable Wire Sizes (mm): 0.51 - 0.76 mm
- Gender: Female
- Application: Signal, Wire-to-Board
- Crimp Height: 1.57mm maximum
- Standards: RoHS and REACH compliant
Buy the Molex 0097000001 – Reliable Crimp Terminal for Industrial Applications
Secure your electrical connections with the Molex Crimp Terminal designed for 22-30 AWG wires. Made from durable brass with tin plating, it ensures corrosion resistance and long-lasting performance. Suitable for wire-to-board applications, this terminal supports up to 3A current and 250V voltage, providing reliable performance in industrial, electronic, and manufacturing environments. The reel packaging simplifies the assembly process, making it ideal for high-volume production. Enhance your projects with this high-quality, RoHS-compliant crimp terminal for safe and efficient electrical connections.
Buy Molex 0097000001 now and experience unmatched reliability and performance with high-quality wire-to-board connections for industrial use.
Frequently Asked Questions
Where can I buy MOLEX 97000001?
You can click on the BUY or RFQ button to purchase 97000001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 97000001?
You can download the 97000001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 97000001?
MOLEX
