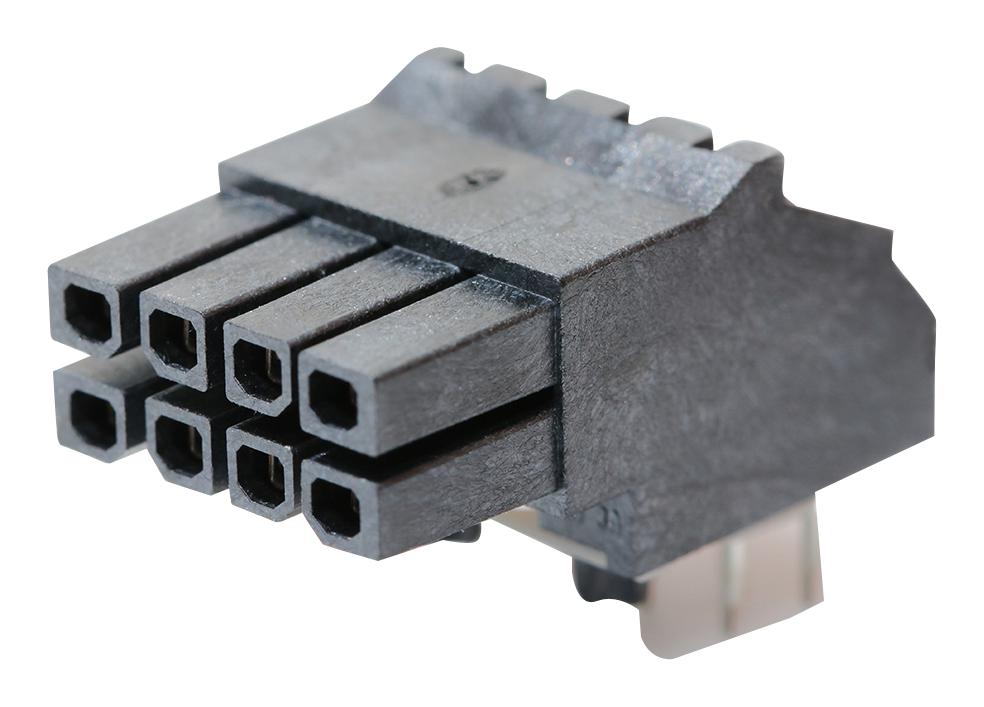

MOLEX 447640802 Micro-Fit BMI Receptacle Header
The MOLEX 44764-0802 Micro-Fit BMI receptacle header is a robust and reliable component designed for secure connections in a variety of applications. This header features 8 circuits arranged in a dual-row configuration with a right-angle orientation, making it suitable for space-constrained designs. The gold plating on the mating interface ensures excellent electrical conductivity and durability, while the tin plating on the termination interface facilitates easy soldering. It is commonly used in industrial equipment, consumer electronics, and automotive applications where a secure and dependable power or signal connection is required. The header's polarized design and PCB retention features contribute to ease of assembly and improved reliability.
MOLEX 447640802 Micro-Fit BMI Receptacle Header Specifications:
- circuits_loaded: 8
- circuits_maximum: 8
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Phosphor Bronze
- material_plating_mating: Gold
- material_plating_termination: Tin
- net_weight_g: 2.459
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- plating_min_mating_um: 0.381
- plating_min_termination_um: 2.540
- polarized_to_pcb: Yes
- surface_mount_compatible_smc: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 8.5
- voltage_maximum_v: 600
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability_wave: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
