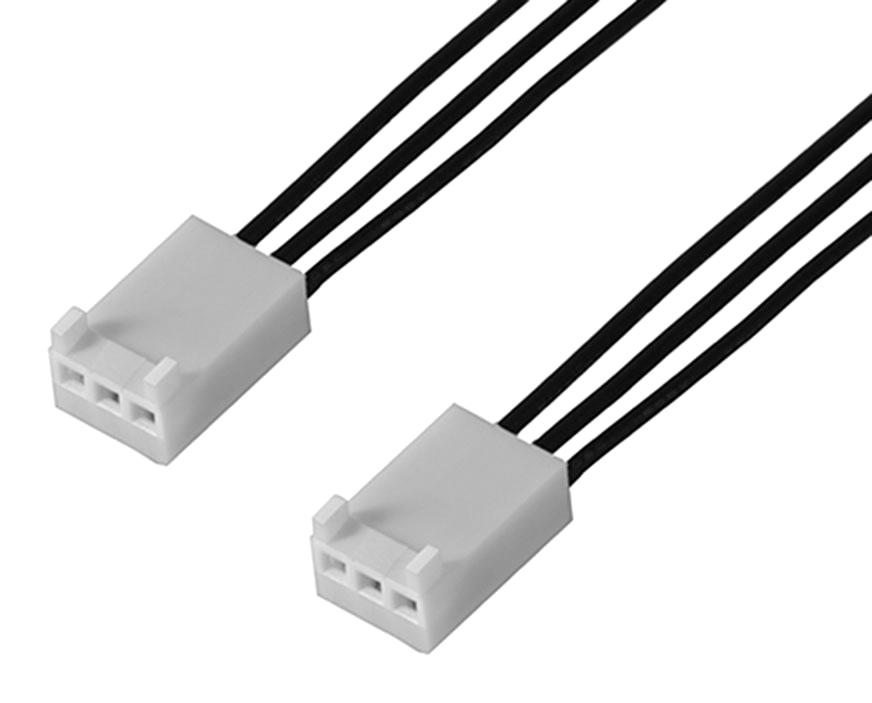

MOLEX 2177961031 KK 254 Cable Assembly
The MOLEX 217796-1031 is a KK 254-to-KK 254 off-the-shelf cable assembly designed for various industrial applications requiring reliable connectivity. This assembly offers a 2.54mm pitch, a 150mm length, and 3 circuits, making it suitable for connecting devices in a compact and efficient manner. It features a natural (white) resin color and utilizes brass with tin plating for both mating and termination interfaces, ensuring excellent conductivity and durability. The assembly is RoHS compliant and halogen-free, meeting environmental standards. It is ideal for applications where a pre-terminated cable solution is needed, reducing assembly time and ensuring consistent performance.
MOLEX 2177961031 KK 254 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- series: 217796
- assembly_configuration: Dual Ended
- connectors: KK 254-to-KK 254
- cable_length: 150.00mm
- circuits_loaded: 3
- color: Natural (White)
- gender: Female-Female
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- pitch_mating_interface: 2.54mm
- wire_insulation_diameter: 1.57mm max
- wire_size_awg: 22
- wire_cable_type: UL 11028 171857
- number_of_rows: 1
- termination_interface_style: Crimp or Compression
- net_weight_g: 3.265
- upc: 195842122802
Buy the 217796-1031 MOLEX KK 254 Cable Assembly | myMectronic
Purchase the MOLEX 217796-1031 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2177961031?
You can click on the BUY or RFQ button to purchase 2177961031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177961031?
You can download the 2177961031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177961031?
MOLEX
