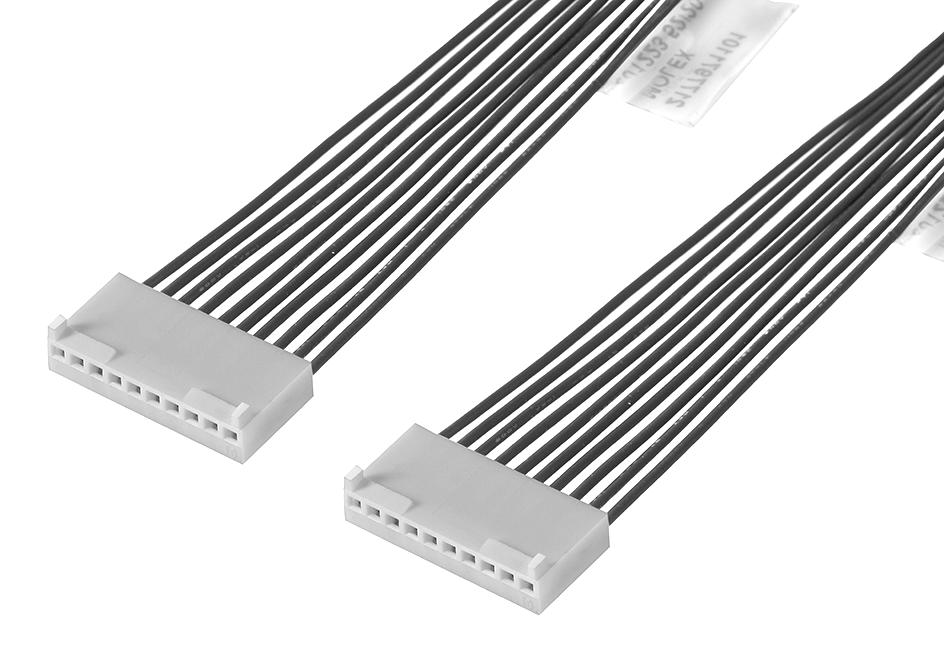

MOLEX 2177961102 KK 254 Cable Assembly
The MOLEX 217796-1102 is a dual-ended cable assembly designed for connecting KK 254 connectors. This off-the-shelf (OTS) assembly offers a convenient solution for applications requiring a pre-configured cable with a 2.54mm pitch and 10 circuits. Constructed with brass and plated with tin, it provides reliable electrical connections. The nylon resin insulation ensures durability and insulation. It is RoHS compliant and features a low-halogen status, making it suitable for a wide range of industrial and commercial applications.
MOLEX 2177961102 KK 254 Cable Assembly Specifications:
- Assembly Configuration: Dual Ended
- Connectors: KK 254-to-KK 254
- Cable Length: 300.00mm
- Circuits (Loaded): 10
- Color: Natural (White)
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 16.580/g
- Number of Rows: 1
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 2.540µm
- Single Ended: No
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22
- Wire/Cable Type: UL 11028
- UPC: 195842122963
- Mates With: KK254 PCB Headers 42375, 42377, 42376, 4030, 6373, 6410, 171856, 171857
Buy the 217796-1102 MOLEX KK 254 Cable Assembly | myMectronic
Purchase the MOLEX 217796-1102 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2177961102?
You can click on the BUY or RFQ button to purchase 2177961102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177961102?
You can download the 2177961102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177961102?
MOLEX
