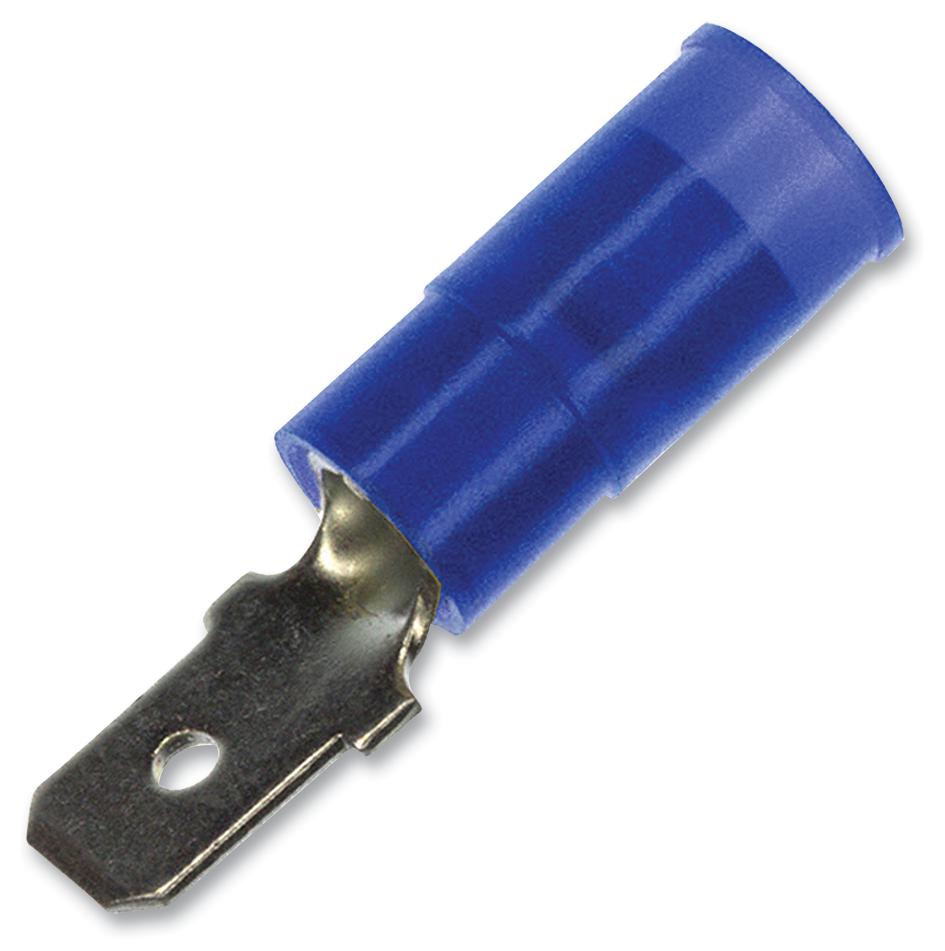

MOLEX 190250008 Quick Disconnect Terminal
The Avikrimp Quick Disconnect terminal is designed for 14-16 AWG wire, featuring a male tab measuring 4.75 x 0.51mm. Made with durable brass and coated in zinc chromate, it provides reliable electrical connections and easy mating with corresponding connectors. Compatible with insulated wire, it supports a maximum voltage of 600V and operates effectively within a temperature range of -65°C to +105°C. Its blue color indicates insulation and it is CSA-certified, RoHS compliant, halogen-free, and suitable for various industrial applications requiring quick disconnection and secure termination.
MOLEX 190250008 Quick Disconnect Terminal Specifications:
- Material - Metal: Brass
- Material - Plating Mating: Zinc Chromate
- Material - Plating Termination: Zinc Chromate
- Material - Resin: Nylon (PA)
- Color - Resin: Blue
- Flammability: UL 94V-2
- Gender: Male
- Tab Thickness: 0.51mm
- Tab Width: 4.75mm
- Wire Size AWG: 14, 16
- Wire Size mm: 1.30-2.00
- Voltage - Maximum: 600V
- Temperature Range - Operating: -65°C to +105°C
- Net Weight: 0.913 g
- Dimensions: 4.75mm x 0.51mm tab
- Certifications: CSA, RoHS, Halogen-Free
- Packaging Type: Bag
Buy the Molex Series Quick-Disconnect Terminal: 190250008
Purchase the Molex Quick Disconnect Terminal for 14-16 AWG wire online today to ensure fast, reliable, and maintenance-free electrical connections. Designed with high-quality brass and zinc chromate coating, it provides excellent conductivity and corrosion resistance. The terminal supports up to 600V and operates within a temperature range of -65°C to +105°C, making it suitable for various industrial and automation applications. Its easy-mate design and CSA certification guarantee safety and efficiency in your electrical systems. Order now for immediate online delivery and superior performance.
Buy Molex 190250008 now and experience unmatched reliability and performance with quick and secure wire connections.
