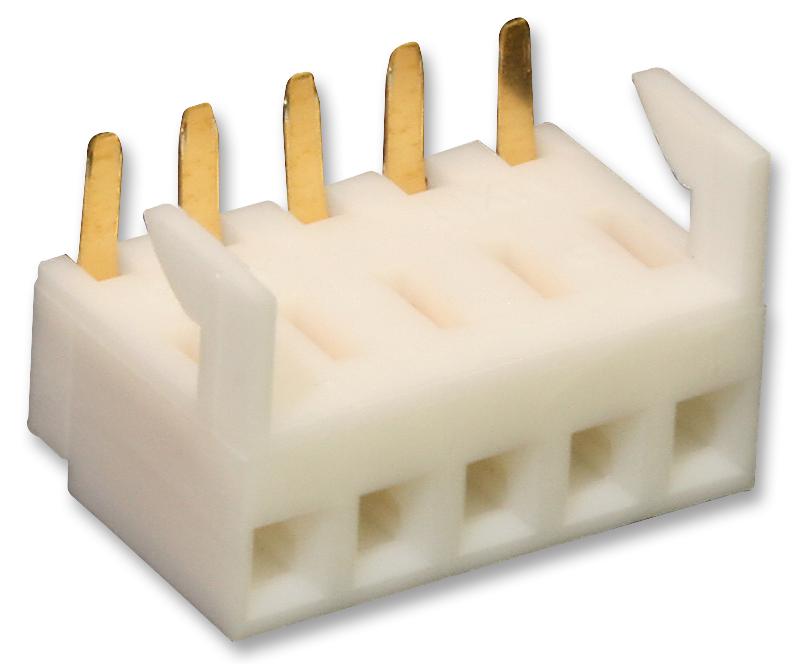

MOLEX 22162051 Board-to-Board Connector
The KK 254 Connector System is designed for reliable board-to-board and wire-to-board connections, supporting up to 5A and 250V per circuit at a 2.54mm pitch. It features dual-cantilever terminals, polarizing headers with ribs, and friction-lock mechanisms for secure mating. Made from high-temperature nylon with reflow matte-tin plating, it ensures durability in demanding environments. This versatile connector is ideal for automotive, consumer electronics, communication, networking, and medical applications, providing robust electrical performance and easy assembly in compact spaces.
MOLEX 22162051 Board-to-Board Connector Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Nylon
- Color - Resin: Natural (White)
- Flammability: 94V-0
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 500V
- Temperature Range - Operating: -55°C to +105°C
- Pitch - Mating Interface: 2.54mm
- PC Tail Length: 1.60mm
- Oriented for right angle mounting
- PCB Thickness - Recommended: 1.60mm
- Number of Circuits: 5
- Circuits (Maximum): 5
- Net Weight: 0.536g per connector
- Packaging: Tray
- Lock to Mating Part: Yes
- Guide to Mating Part: None
- Seam: None
- Polarized to PCB: Yes
- RoHS and REACH compliant
Buy the Buy Molex KK 254 Connector Part Number 22162051 Online
Secure your electronic projects with the Molex KK 254 Connector system, supporting up to 5A, 250V, and featuring a 2.54mm pitch. Made from durable high-temperature nylon with gold plating, it offers reliable connections for automotive, consumer electronics, and medical applications. Easy to assemble, with friction-lock mechanisms for secure mating, and compatible with various headers, this connector ensures high performance and long-term durability in demanding environments. Order online now for fast delivery.
Buy Molex KK 254 Connector 22162051 now and experience unmatched reliability and high-performance connectivity in your electronic designs.
Frequently Asked Questions
Where can I buy MOLEX 22162051?
You can click on the BUY or RFQ button to purchase 22162051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 22162051?
You can download the 22162051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 22162051?
MOLEX
