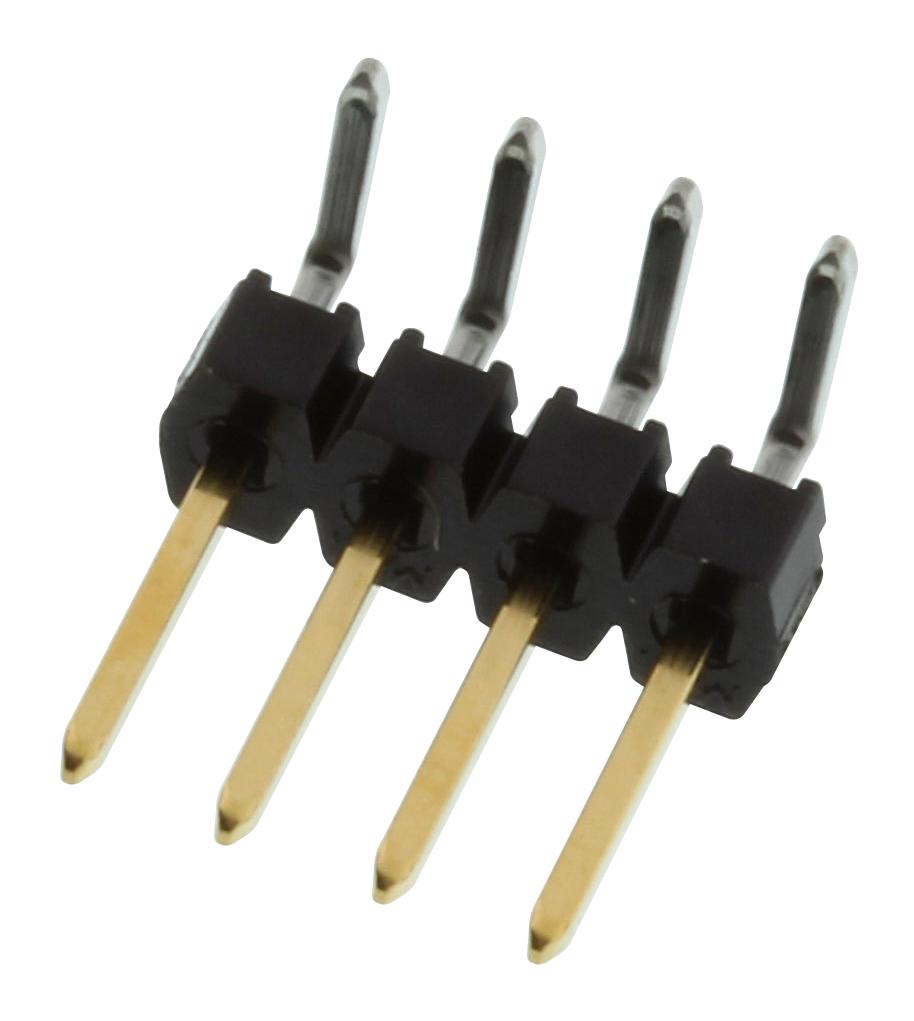

MOLEX 901210124 PCB Connector
The 2.54mm Pitch C-Grid III Header is a reliable, high-quality wire-to-board connector suited for various industrial and electronic applications. It features a single row, right-angle orientation with four circuits, tin plating, and UL certification for safety. Designed for durability, it supports a maximum current of 3A per contact and a voltage of 350V. Its simple yet robust design makes it ideal for connecting PCB components in space-constrained environments, offering easy assembly with through-hole termination and a compact 2.54mm pitch. Perfect for automation, industrial equipment, and electronic assemblies.
MOLEX 901210124 PCB Connector Specifications:
- Pitch - Mating Interface: 2.54mm
- Pitch - Termination Interface: 2.54mm
- Number of Circuits (Loaded): 4
- Circuits (Maximum): 4
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 0.309g
- Orientation: Right Angle
- PC Tail Length: 3.048mm
- Temperature Range - Operating: -55°C to +125°C
- Current - Maximum per Contact: 3A
- Voltage - Maximum: 350V
- Packages: Tray
- PCB Locator: None
- PCB Retention: None
- Lock to Mating Part: No
- Polarized to Mating Part: No
- Shrouded: No
- Stackable: No
- Guide to Mating Part: None
- First Mate / Last Break: No
- RoHS Compliant: Yes
- UL Certified: Yes
- Halogen-Free: No
- Durability: Supports multiple soldering cycles up to 005 at max temperature 260°C
- Solder Process Data: Max process temp 260°C, process time 5 seconds, lead-free compatible
Buy the Molex 901210124 – Reliable PCB Header for Industrial Applications
Purchase the Molex 901210124 PCB connector online now for reliable and efficient electronic connections. This 2.54mm pitch, single row, right-angle header is ideal for industrial, automation, and electronic projects. Featuring tin plating and UL certification, it offers excellent electrical performance with a maximum current of 3A and voltage of 350V. Its durable construction ensures longevity and easy installation in space-constrained environments. Buy online today for quality assured components that support your manufacturing and maintenance needs.
Get Molex 901210124 today—built for precision and long-lasting durability in electronic assemblies and industrial equipment.
Frequently Asked Questions
Where can I buy MOLEX 901210124?
You can click on the BUY or RFQ button to purchase 901210124 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901210124?
You can download the 901210124 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901210124?
MOLEX
