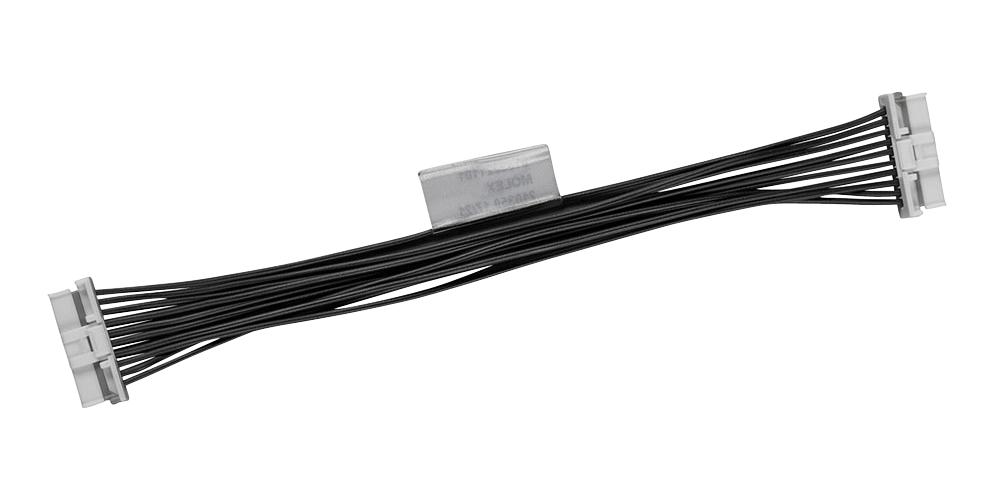

MOLEX 2183221102 DuraClik Cable Assembly
The 218322 series is a durable 2mm pitch DuraClik ISL-to-DuraClik ISL cable assembly ideal for automotive, industrial, and consumer electronics. Featuring an audible click for reliable mating, it protects contacts from dust and debris, reducing tangling during harness assembly. Constructed with a white PBT housing, its copper alloy contacts are tin-plated for longevity, supporting up to 60V AC/DC with 22 AWG wire. Operating from -40°C to +105°C, it supports crimp or compression termination and withstands 20 mating cycles for dependable use in demanding environments.
MOLEX 2183221102 DuraClik Cable Assembly Specifications:
- Pitch: 2.00mm
- Cable Length: 300.00mm
- Circuits: 10
- Color: White
- Housing Material: PBT
- Contact Material: Copper Alloy
- Plating: Tin
- Voltage Rating: 60V AC/DC
- Current per Contact: 3A
- Operating Temperature Range: -40°C to +105°C
- Termination: Crimp or Compression
- Durability: 20 mating cycles
Buy the Molex Series DuraClik: 2183221102
Purchase the Molex DuraClik Cable Assembly 2183221102 online today and enjoy a reliable, dust-resistant connection solution with quick mating, high durability, and versatile use across automotive, industrial, and consumer applications. Featuring a 2mm pitch and insulated contacts, it supports up to 60V AC/DC with 22 AWG wire, ensuring safe, efficient operation from -40°C to +105°C. Its design facilitates easy crimp or compression termination, providing a robust, reusable connection for demanding environments and quick installation needs.
Order your Molex Series DuraClik 2183221102 today and ensure reliable, dust-protected connections for automotive, industrial automation, and consumer electronics projects.
