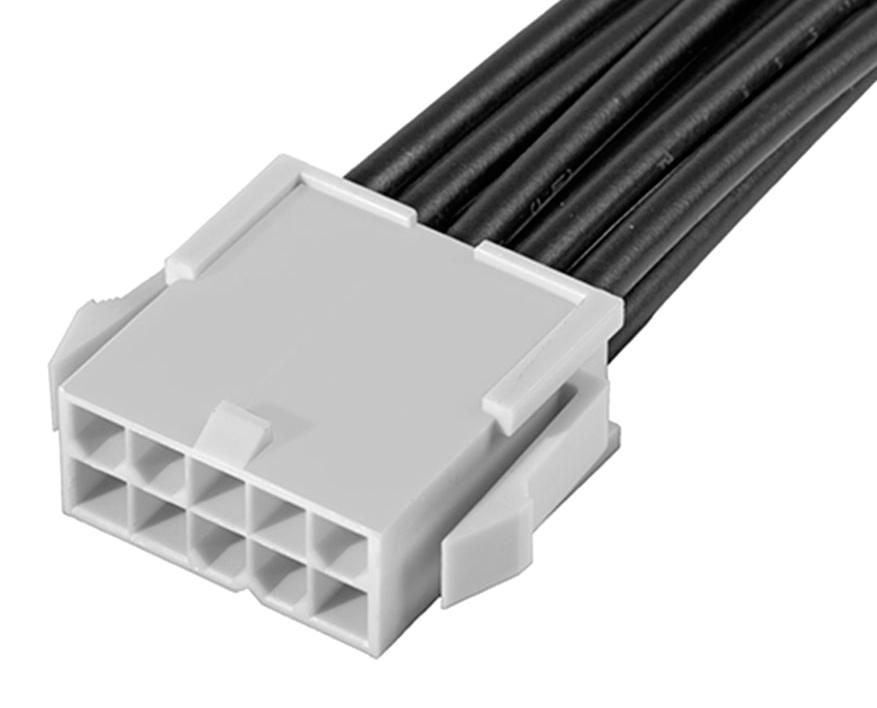

MOLEX 2153261103 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-1103 is a Mini-Fit Jr. female-to-pigtail off-the-shelf (OTS) cable assembly designed for power applications. With a 600mm length and 10 circuits, this assembly provides a secure and efficient connection between wires and boards. Its dual-row design and tin plating ensure excellent conductivity and durability, making it suitable for various industrial and commercial applications. The assembly is RoHS compliant and features a robust nylon resin construction for enhanced protection.
MOLEX 2153261103 Mini-Fit Jr. Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 215326
- Application: Power, Wire-to-Board, Wire-to-Wire
- Configuration: Single Ended
- Connector: Mini-Fit Jr.-to-Pigtail
- Cable Length: 600.00mm
- Circuits (Loaded): 10
- Color: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Material - Resin: Nylon
- Net Weight: 134.691/g
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- UPC: 193264590087
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
Buy the 215326-1103 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215326-1103 Mini-Fit Jr. Cable Assembly securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153261103?
You can click on the BUY or RFQ button to purchase 2153261103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153261103?
You can download the 2153261103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153261103?
MOLEX
