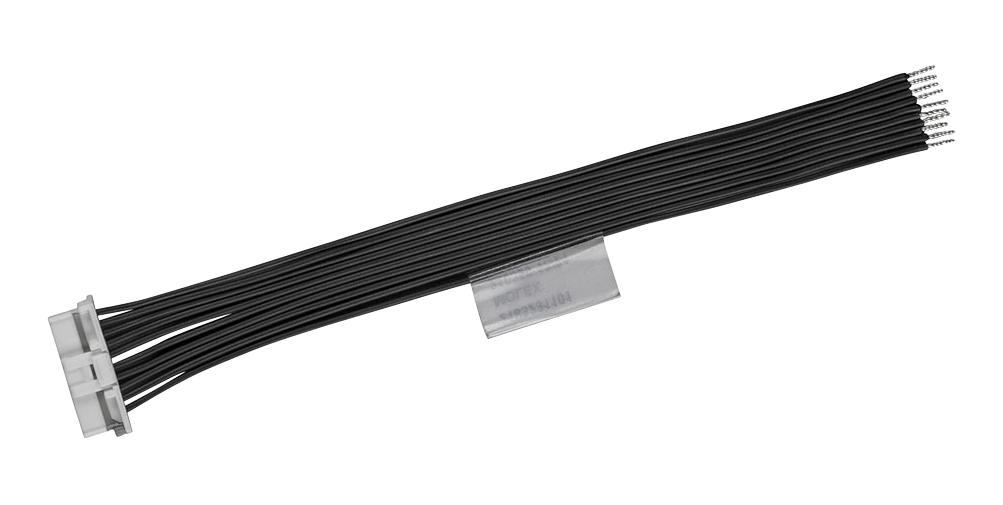

MOLEX 2183231102 DuraClik Cable Assembly
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch design with an audible click for mating confirmation. Its enclosed contact protects against dust and debris, reducing tangling during harness assembly. Made with a white PBT housing, it is suitable for automotive, commercial vehicles, consumer devices, and industrial automation applications. Supporting up to 60V AC/DC and 22 AWG wire, its copper alloy contacts are tin-plated. The connector supports crimp or compression termination, operates from -40°C to +105°C, and withstands up to 20 mating cycles for reliable long-term use.
MOLEX 2183231102 DuraClik Cable Assembly Specifications:
- Pitch: 2.00mm
- Number of Circuits: 10
- Cable Length: 300.00mm
- Color - Resin: White
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Wire Size AWG: 22
- Wire Insulation Diameter: 1.30mm
- Voltage - Maximum: 60V AC/DC
- Current - Maximum per Contact: 3.0A
- Operating Temperature Range: from -40°C to +105°C
- Durability: up to 20 mating cycles
- Termination Style: Crimp or Compression
Buy the Buy Molex DuraClik Connectors Part Number 2183231102 Online
Enhance your assembly with the Molex DuraClik Cable Assembly, featuring a 2mm pitch, 10 circuits, and a robust white PBT housing. This assembly assures secure connections with a satisfying audible click and protects contacts from dust and debris, ensuring longevity. Designed for automotive, industrial, and consumer applications, it supports 60V and 22 AWG wire, with crimp or compression termination options. Its temperature range from -40°C to +105°C guarantees dependable performance in various environments, with durability for up to 20 mating cycles.
Buy Molex 2183231102 now and experience reliable, dust-proof connections with easy click-mating, perfect for automotive and industrial automation needs.
Frequently Asked Questions
Where can I buy MOLEX 2183231102?
You can click on the BUY or RFQ button to purchase 2183231102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183231102?
You can download the 2183231102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183231102?
MOLEX
