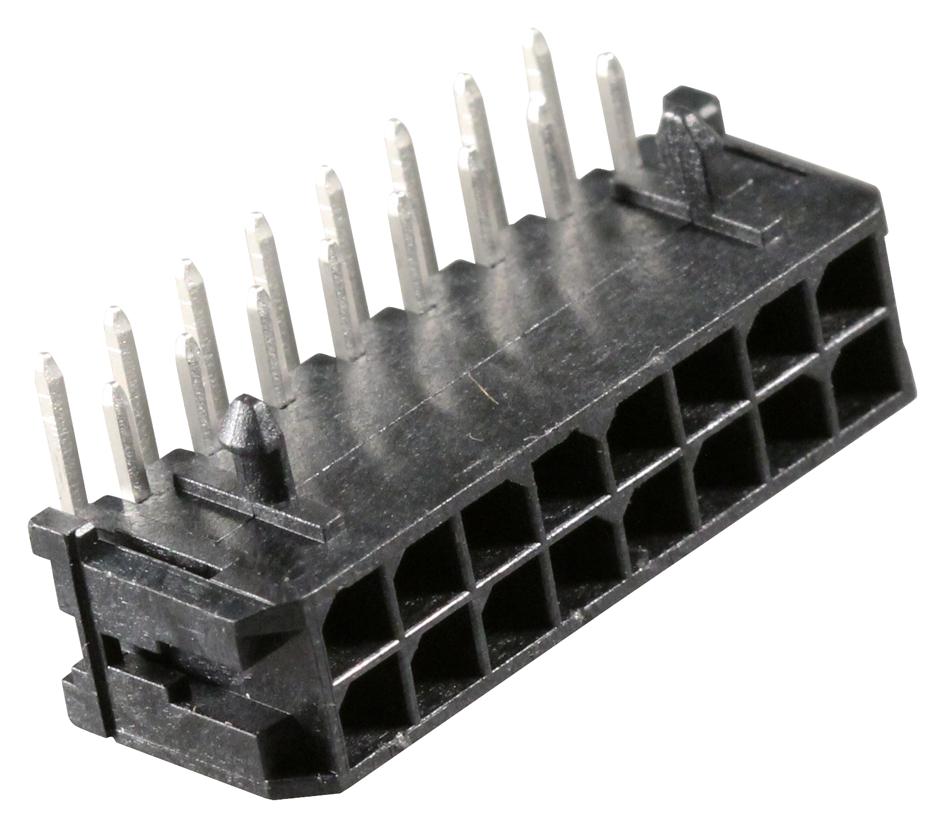

MOLEX 430451601 Micro-Fit Connector
This high-quality, fully polarized connector housing features positive latching and a locking tang on the terminal, ensuring secure and reliable connections across diverse applications including automotive, energy, communications, consumer electronics, and medical devices. With a 3.00mm pitch and dual-row configuration, it supports up to 16 circuits with snap-in and PCB lock capabilities. Made from high-temperature thermoplastic with gold-plated brass contacts, it withstands operating temperatures from -40°C to +105°C. Suitable for wire-to-board connections, this micro-fit 3.0 connector system guarantees durability and safety for demanding industrial uses.
MOLEX 430451601 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 16
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Durability (mating cycles max): Not specified
- Flammability: IEC 60695-2-13 GWIT at least 775°C, IEC 60695-2-12 GWFI above 850°C
- Glow-Wire Capable: Yes
- Mated Height: 10.29mm
- Operating Temperature Range: -40°C to +105°C
- Voltage Max: 600V
- Current Max per Contact: 8.5A
- Housing Type: Right-Angle, Fully Polarized
- PCB Thickness - Recommended: Not specified
- Surface Mount Compatibility: Yes
- Stackable: No
- Shrouded: Yes
- PCB Locator and Retention: Yes
- Packaging: Tray
- Process Capability: Lead-free, Process Temperature Max: 260°C, Max Cycles: 030
Buy the Molex Series Micro-Fit 3.0 Connector: 430451601
Order the Molex Micro-Fit 3.0 wire-to-board connector today and enjoy highly reliable, polarized connections with secure locking for automotive, energy, and electronic applications. Featuring 16 circuits, a 3.00mm pitch, and gold-plated brass contacts, it offers excellent performance and durability from -40°C to +105°C. The snap-in design with PCB lock ensures easy installation and firm attachment. Made from high-temperature thermoplastic with flame-resistant properties, this connector ensures safety and longevity in critical industrial and electronic systems. Purchase now for quality and peace of mind in your projects.
Get Molex Micro-Fit 3.0 430451601 today—built for secure, reliable wire-to-board connections in demanding electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 430451601?
You can click on the BUY or RFQ button to purchase 430451601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451601?
You can download the 430451601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451601?
MOLEX
