MOLEX 2183971024 Datasheet & Stock

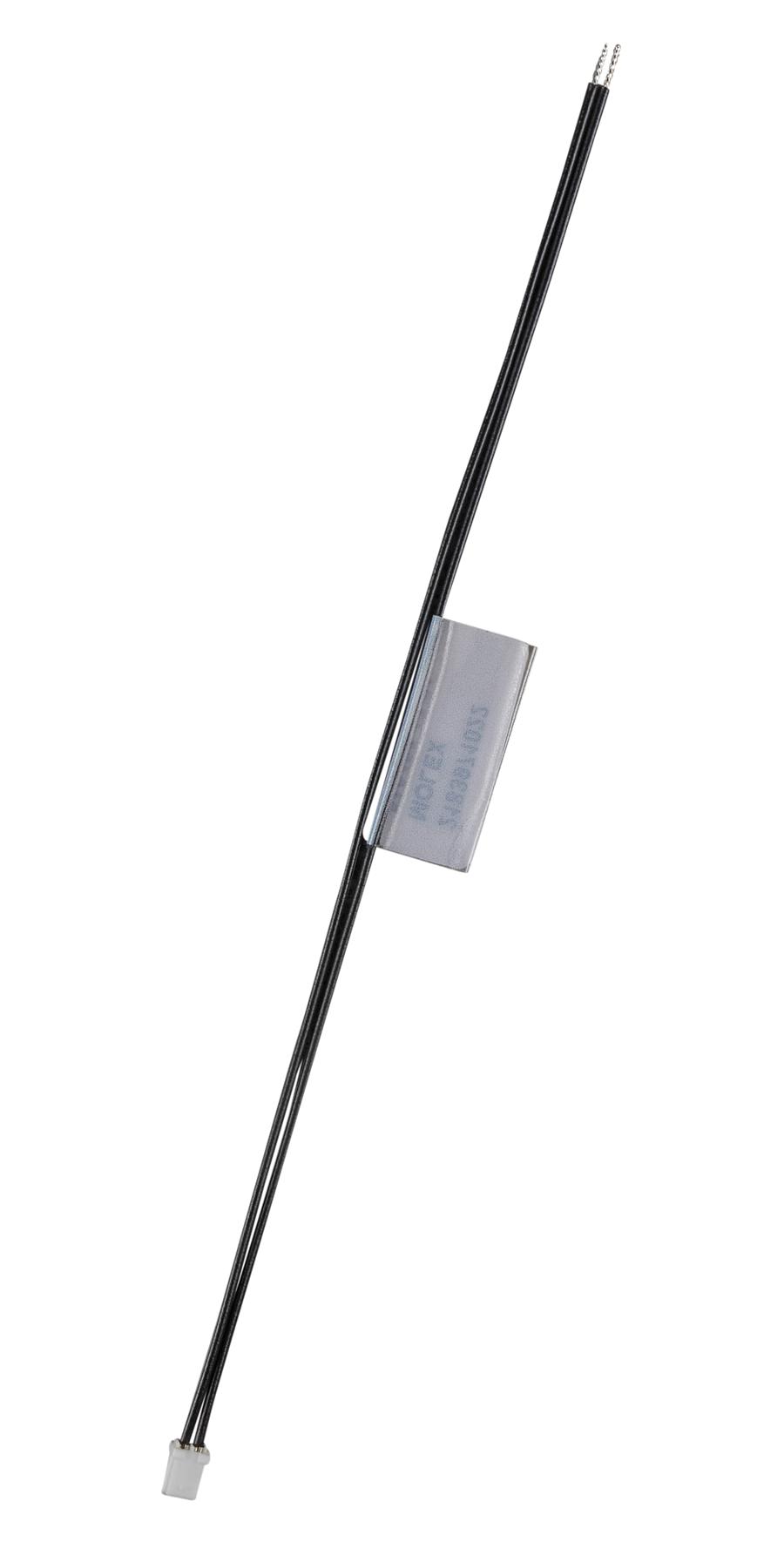

The Pico-Spox 1.5 mm pitch cable assembly is an off-the-shelf (OTS) solution that supports both prototyping and preproduction needs. It features a vertical and right-angle single-row header with a friction lock mechanism for secure terminal retention and latch protection. Designed with popular terminals compatible with widely available crimp tools, it ensures easy assembly and reliable connection. The connector's compact design provides 30% space savings over traditional 2mm wire-to-board systems, making it suitable for consumer electronics, industrial automation, and medical technology applications. The assembly includes a UL and CSA certified Pico-SPOX-to-Pigtail cable with a UL 10002 24 AWG wire, operating temperature from -10°C to +105°C, rated up to 250VAC and 2.5A per contact. It features a nylon housing, phosphor bronze contacts with tin plating, polarization keys to prevent mismating, and a maximum durability of 10 connection cycles. Part number: 2183971024
Frequently Asked Questions
Where can I buy MOLEX 2183971024?
You can click on the BUY or RFQ button to purchase 2183971024 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183971024?
You can download the 2183971024 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183971024?
MOLEX
