MOLEX 2183971061 Datasheet & Stock

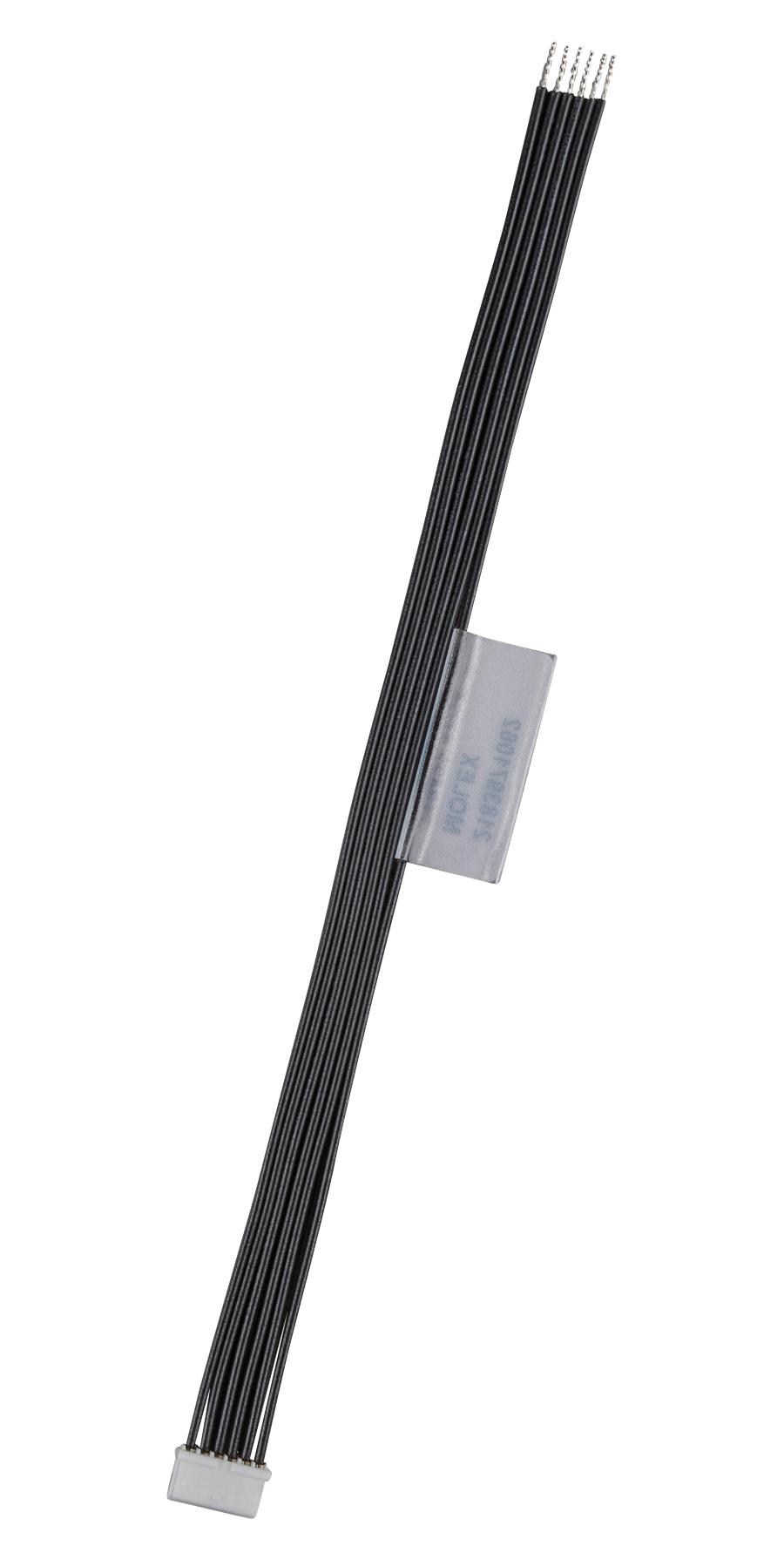

The Pico-SPOX series 2183971061 is an off-the-shelf (OTS) cable assembly featuring a 1.5mm pitch tin-plated discrete wire connector. Designed for ease of prototyping and preproduction, it utilizes popular terminals compatible with widely available crimp applicators. The assembly includes a vertical or right-angle single-row header with a unique friction lock that provides latch protection and secure terminal retention. This connector offers space savings of approximately 30% compared to 2mm wire-to-board systems, making it suitable for applications in consumer electronics, industrial automation, and MedTech. It features UL and CSA certification, a maximum voltage rating of 250VAC, and a maximum current of 2.5A per contact. The wire is 24 AWG UL 10002 type, with a nylon housing, phosphor bronze contacts with tin plating, and operates within a temperature range of -10°C to +105°C. The assembly is designed for a maximum durability of 10 cycles and supports automated assembly with an SMT-type plug header, polarization keys to prevent mismating, and is rated for operating voltages and currents in demanding environments.

View 2183971061Datasheet [pdf]
